Sliding door without rail with centre lock

3D

Sliding door without rail with centre lock are the perfect solution where unrestricted height clearance is required and where a large opening is needed. The door is a good choice where goods must be moved using an overhead travelling crane or fork lift truck.

Read more
Get your quote now

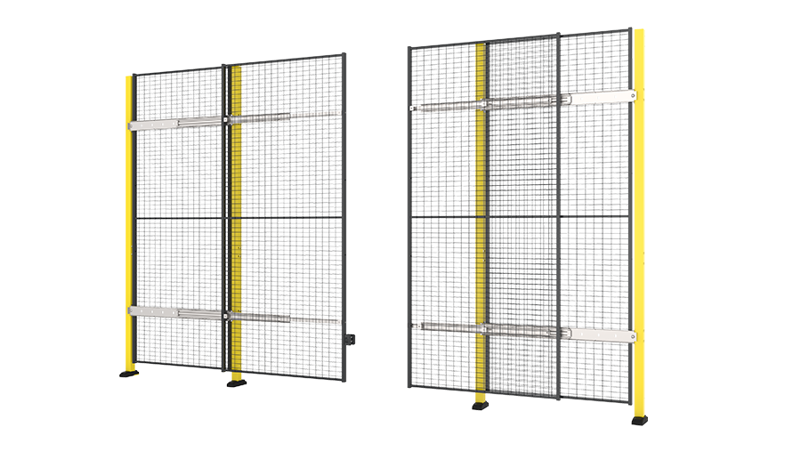

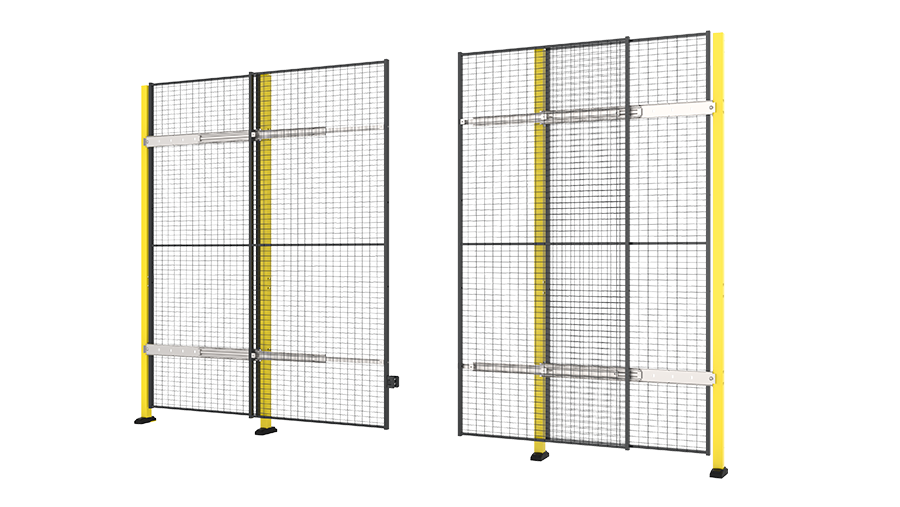

D27-XXX180 Sliding door without rail with centre lock

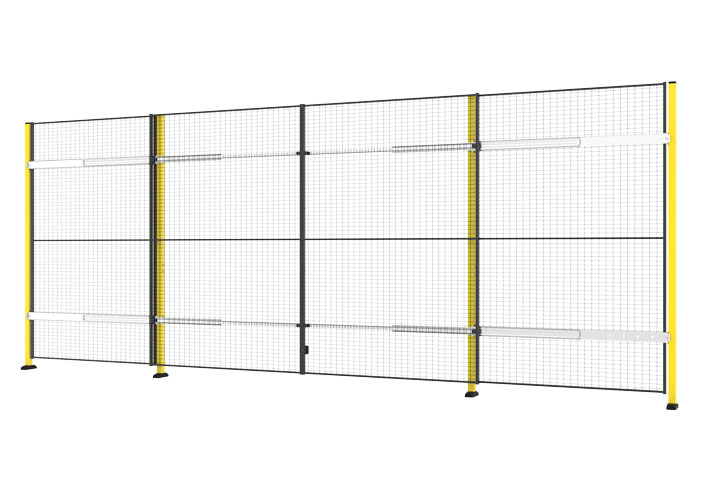

D27-XXX280 D27-XXX280

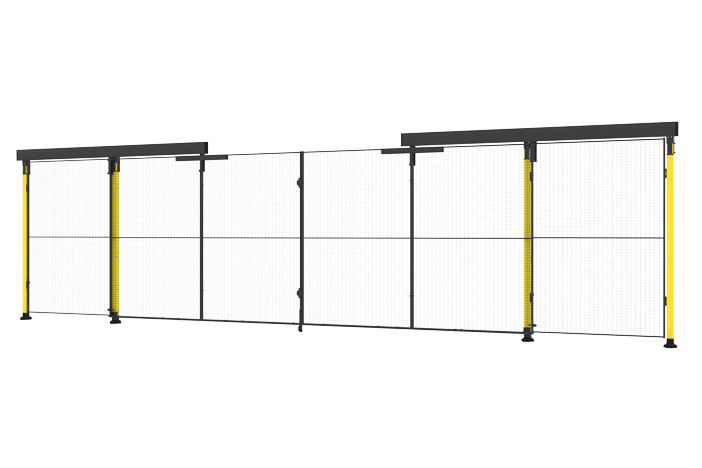

D47-XXX580 D47-XXX580

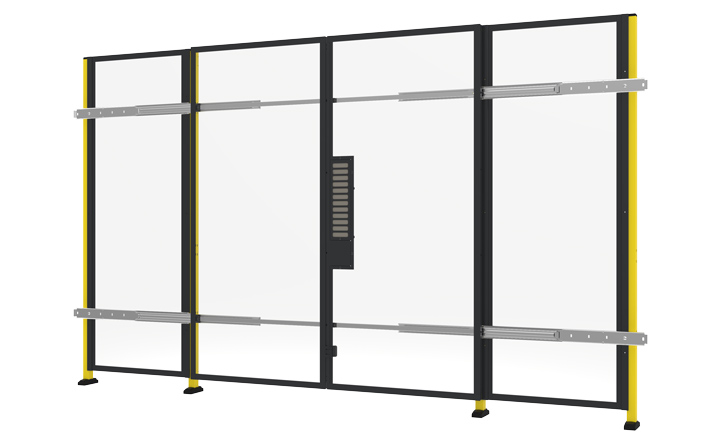

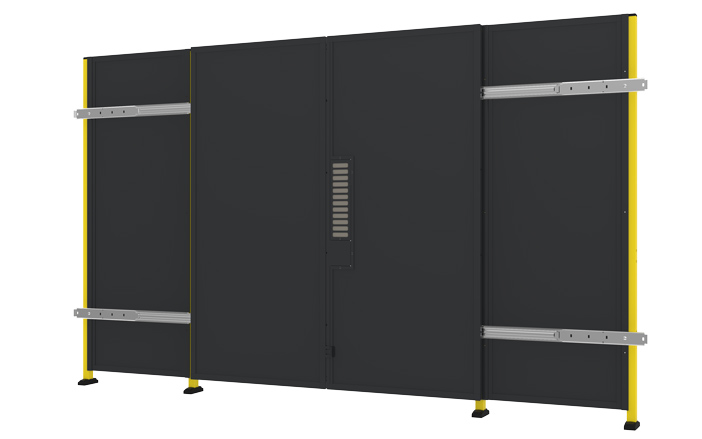

DP27-XXX180 DP27-XXX180
DP27-XXX180 DP27-XXX180

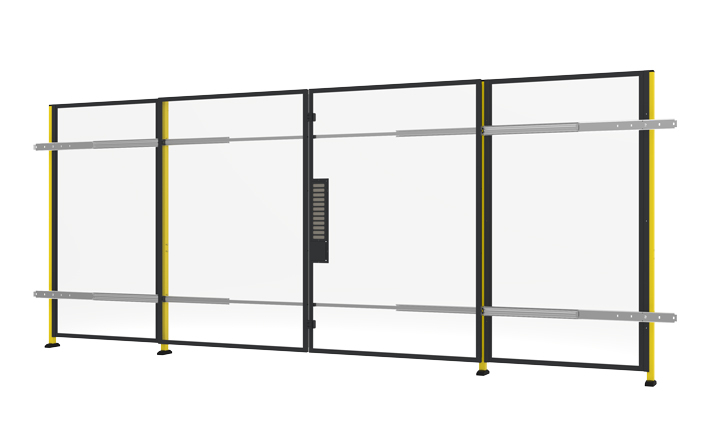

DP27-XXX280 DP27-XXX280

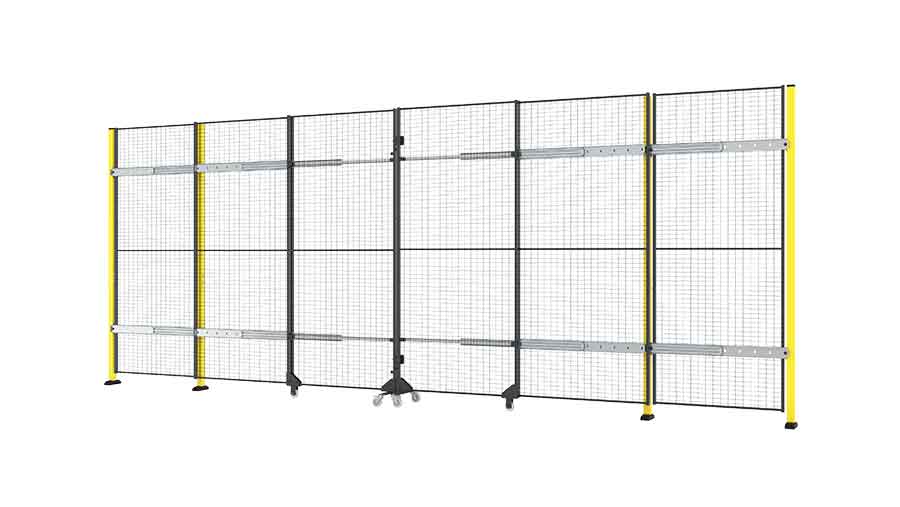

D29-XXX380 Sliding door without rail with centre lock

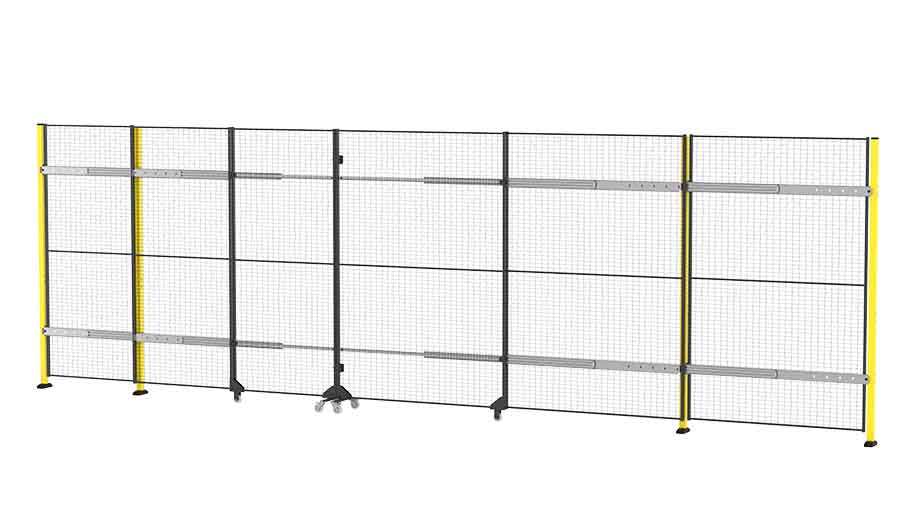

D29-XXX480 Sliding door without rail with centre lock

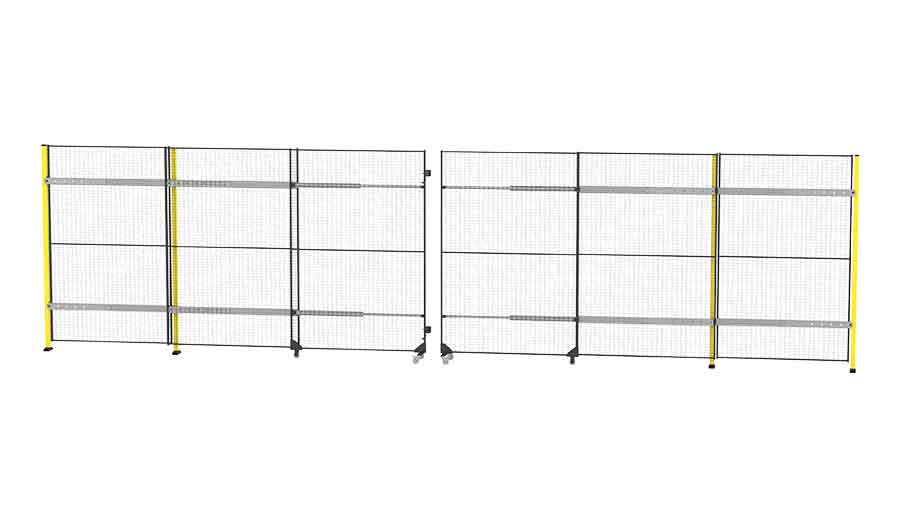

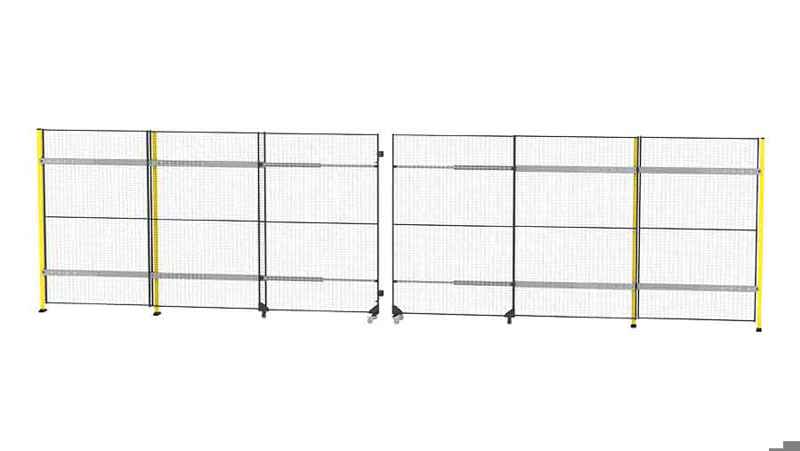

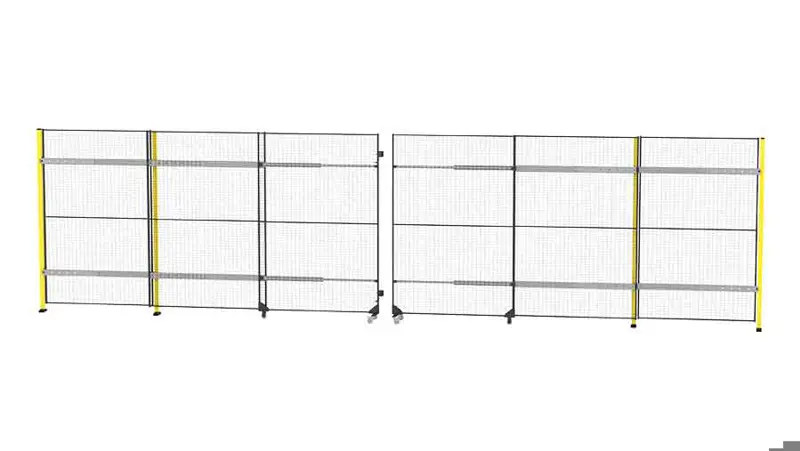

D29-XXX580 Sliding door without rail with centre lock

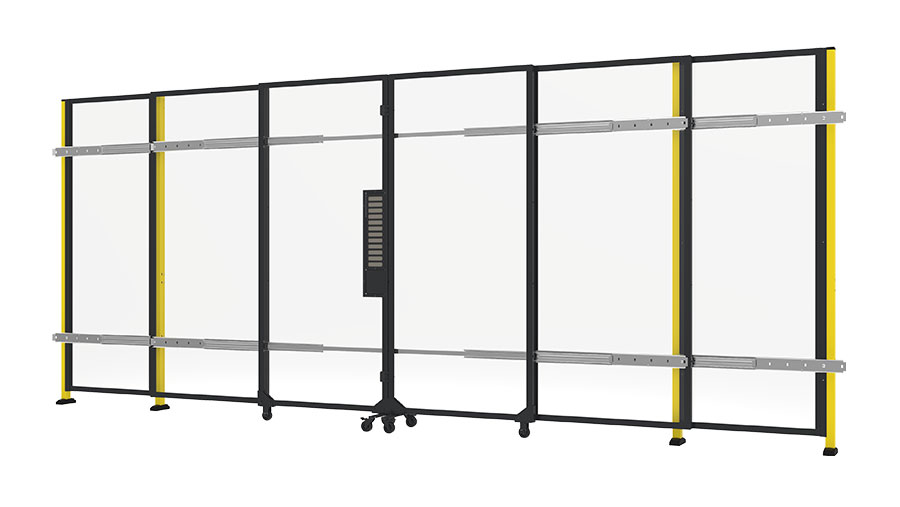

DP29-XXX380 sliding door for machine guarding, without rail and with plastic panels

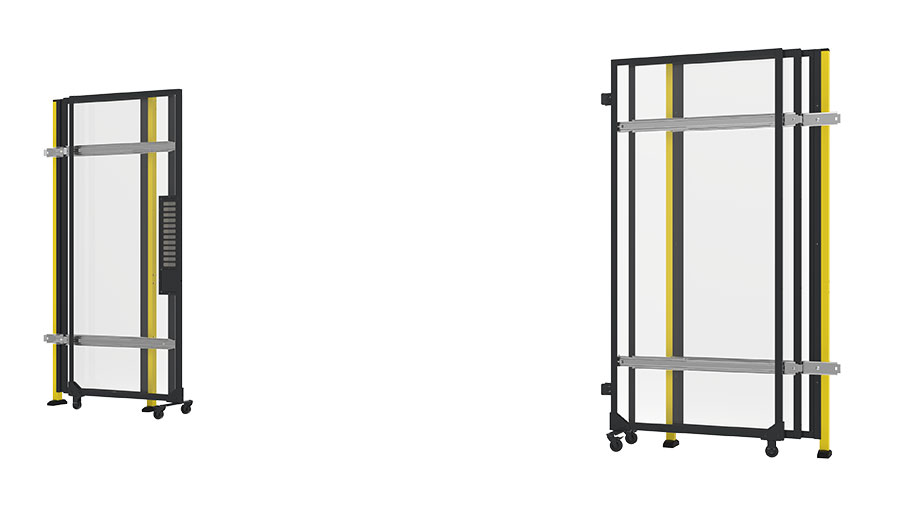

DP29-XXX380 open sliding door for machine guarding, without rail and with plastic panels

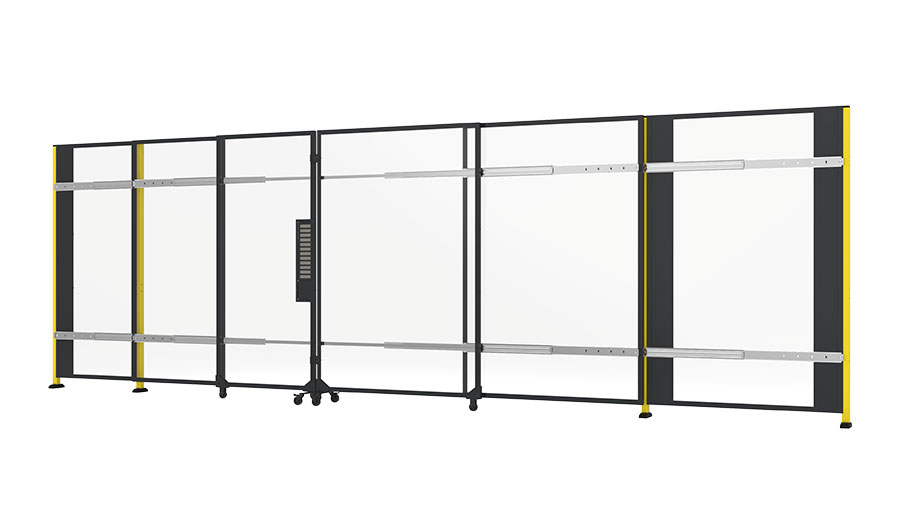

DP29-XXX480 x-guard machine guarding sliding door without rail

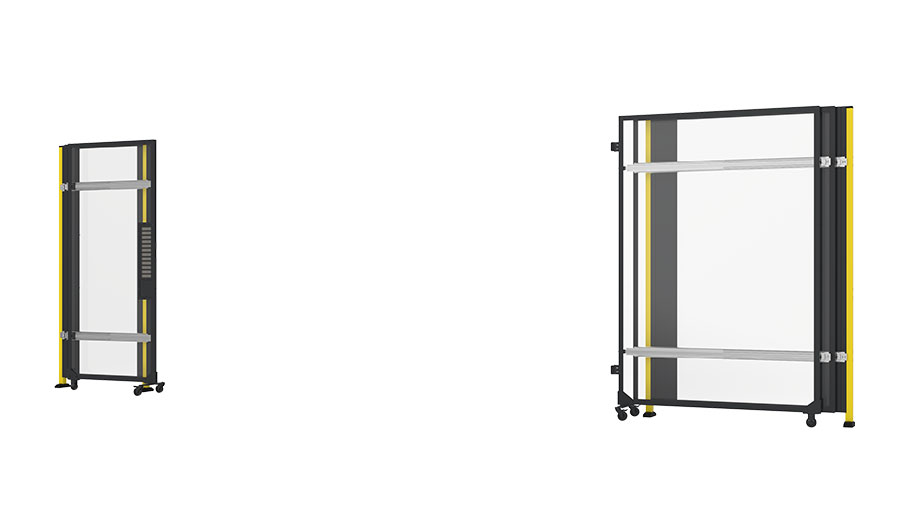

DP29-XXX480 x-guard machine guarding sliding door without rail open

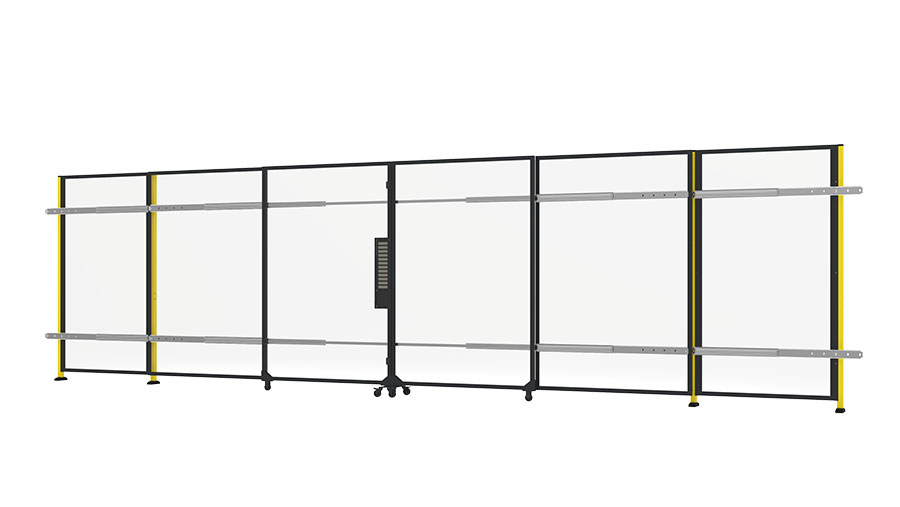

DP29-XXX580 x-guard machine guarding sliding door without rail

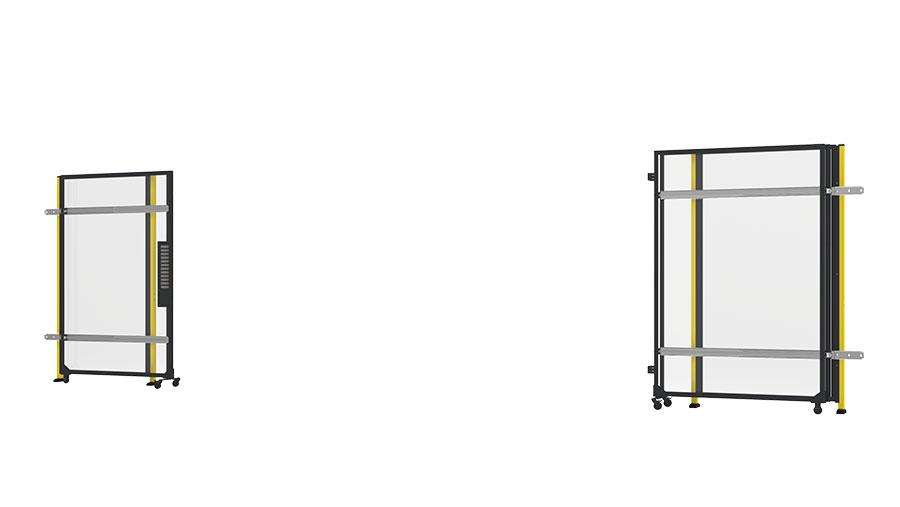

DP29-XXX580 x-guard machine guarding open sliding door without rail
Select CAD Format
Sliding door without rail with centre lock D27-XXX280 D47-XXX580 DP27-XXX180 DP27-XXX180 DP27-XXX280 Sliding door without rail with centre lock Sliding door without rail with centre lock Sliding door without rail with centre lock sliding door for machine guarding, without rail and with plastic panels open sliding door for machine guarding, without rail and with plastic panels x-guard machine guarding sliding door without rail x-guard machine guarding sliding door without rail open x-guard machine guarding sliding door without rail x-guard machine guarding open sliding door without rail

Models

  • Height 2300 mm

    5 Articles
    CAD Article Description Max Width (mm) Height (mm) Max Height (mm) Panel Fits Posts
    		D27-XXX180 Sliding door without rail, centre lock 1800 2300 Mesh Classic 50x50
    1 1
    		D27-XXX280 Sliding door without rail, centre lock 2800 2300 Mesh Classic 50x50
    1 1
    		D47-XXX580 Sliding door without rail, centre lock 5800 2300 Mesh Premium 70x70
    1 1
    		DP27-XXX180 Double sliding doors w/o upper frame - centre lock 1740 2500 Plastic
    Sheet metal     		Classic 50x50
    2 1
    		DP27-XXX280 Double sliding doors w/o upper frame - centre lock 2740 2500 Plastic
    Sheet metal     		Classic 50x50
    1 1
    View more View less

  • Height 2500 mm

    6 Articles
    CAD Article Description Max Width (mm) Height (mm) Panel Fits Posts
    		D29-XXX380 Sliding door without rail with centre lock 3800 2500 Mesh Classic 50x50
    1 2
    		D29-XXX480 Sliding door without rail with centre lock 4800 2500 Mesh Classic 50x50
    1 2
    		D29-XXX580 Sliding door without rail with centre lock 5800 2500 Mesh Classic 50x50
    1 2
    		DP29-XXX380 Sliding door without rail with centre lock 3800 2500 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    		DP29-XXX480 Sliding door without rail with centre lock 4800 2500 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    		DP29-XXX580 Sliding door without rail with centre lock 5800 2500 Plastic
    Sheet metal     		Classic 50x50
    Premium 70x70
    2 2
    View more View less

Downloads

X-Guard Technical

Brochure

Technical Specifications

Sliding door without rail with centre lock are the perfect solution where unrestricted height clearance is required and where a large opening is needed. The door is a good choice where goods must be moved using an overhead travelling crane or fork lift truck.

Maximum height is 2300 mm and maximum width is 2800. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

View more View less
