X-Rail Fall Protection height 1400 mm

X-Rail Fall Protection height 1400 mm

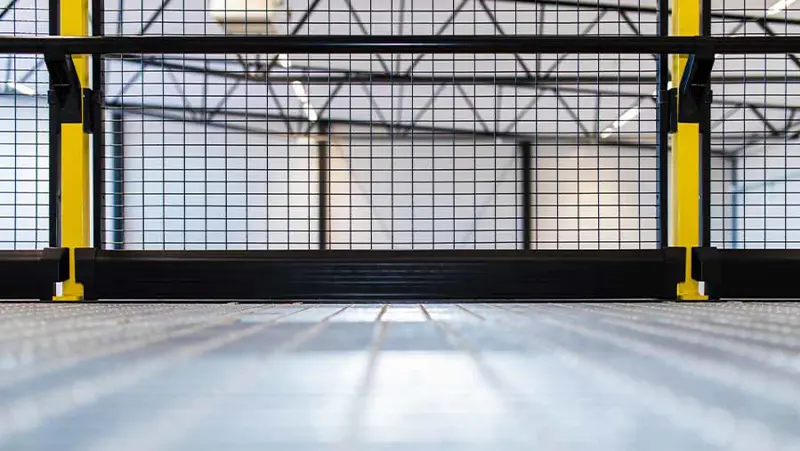

Height 1400 mm with panel

3D

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

Read more
Get your quote now

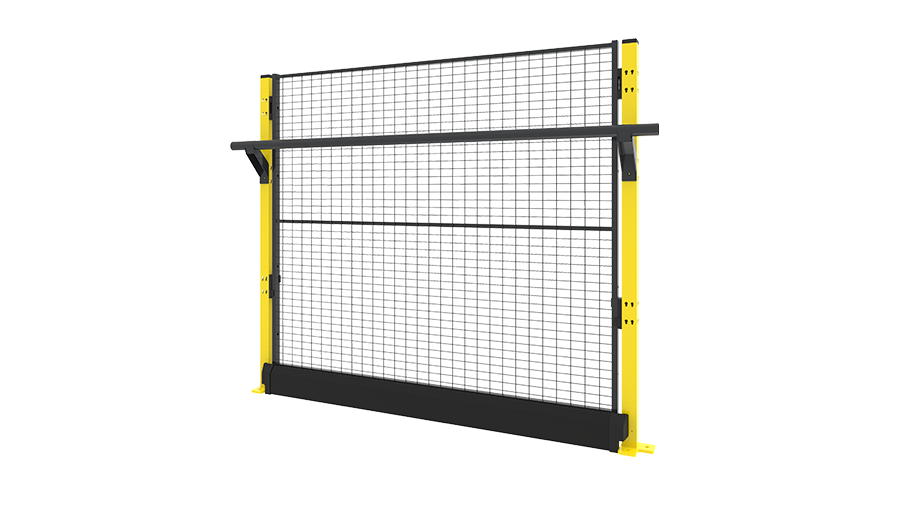

X-Rail 1400 mm with panel

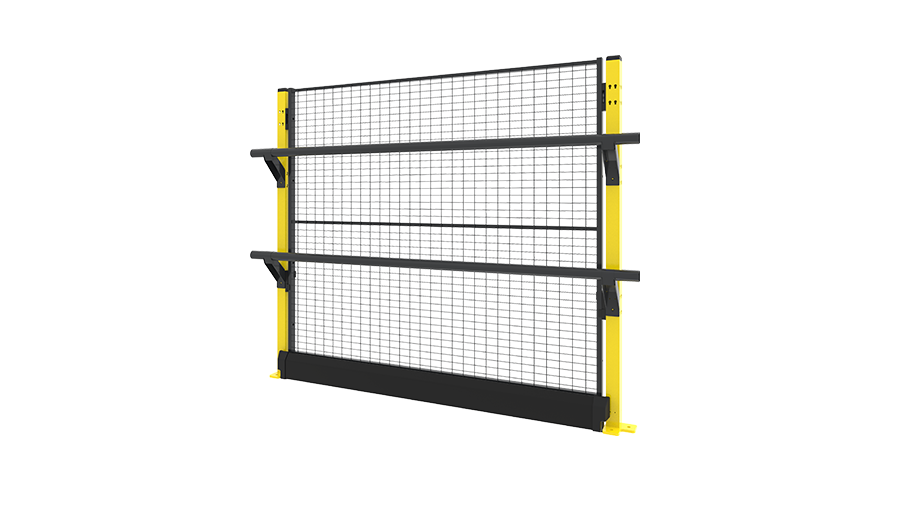

X-Rail 1400 mm with panel two rails

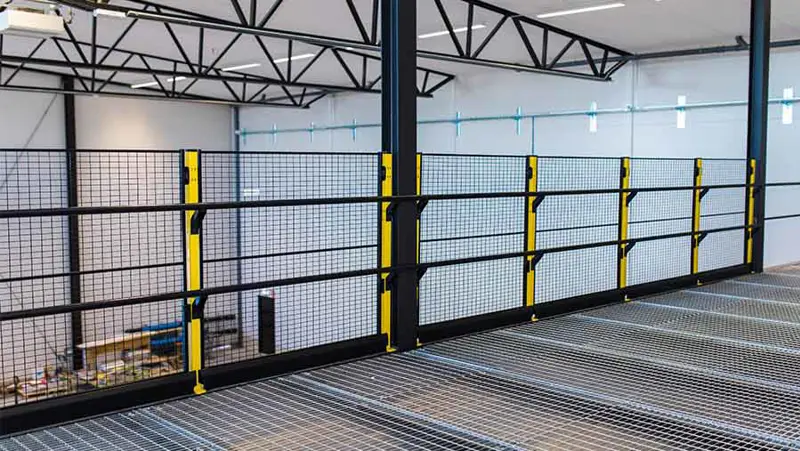

Height 1400 mm with panel

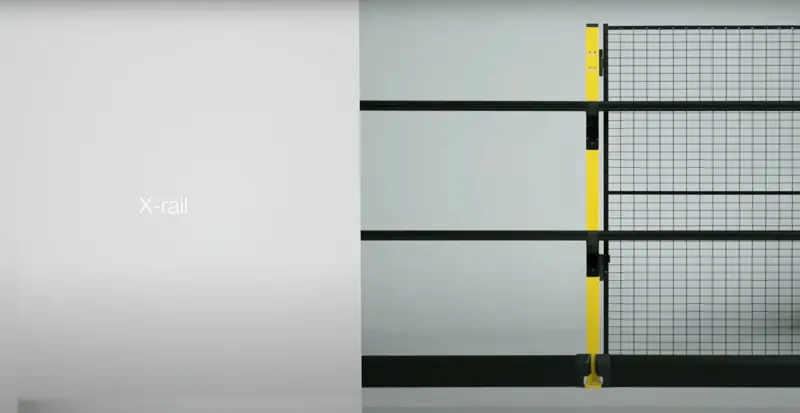

axelent mounting instructions x-rail fall protection
axelent assembly instructions counter plates
Select CAD Format
X-Rail 1400 mm with panel X-Rail 1400 mm with panel two rails Height 1400 mm with panel axelent mounting instructions x-rail fall protection axelent assembly instructions counter plates

Models

  • Panels

    13 Articles
    CAD Article Width (mm) Height (mm) Color
    		W322-130025 250 1300 Graphite Black (RAL 9011)
    		W322-130040 400 1300 Graphite Black (RAL 9011)
    		W322-130050 500 1300 Graphite Black (RAL 9011)
    		W322-130060 600 1300 Graphite Black (RAL 9011)
    		W322-130070 700 1300 Graphite Black (RAL 9011)
    		W322-130080 800 1300 Graphite Black (RAL 9011)
    		W322-130090 900 1300 Graphite Black (RAL 9011)
    		W322-130100 250 1000 Graphite Black (RAL 9011)
    		W322-130110 1100 1300 Graphite Black (RAL 9011)
    		W322-130120 1200 1300 Graphite Black (RAL 9011)
    		W322-130130 1300 1300 Graphite Black (RAL 9011)
    		W322-130140 1400 1300 Graphite Black (RAL 9011)
    		W322-130150 1500 1300 Graphite Black (RAL 9011)
    View more View less

  • Posts 50x50mm

    1 Articles
    CAD Article Height (mm) Color
    		P1170-140 1400 Zinc Yellow (RAL 1018)
    View more View less

Downloads

X-Rail Anchor Bolt

Assembly instruction

List of fastening materials for X-Rail

Product information

Combination option for Counter plate

Product information

X-Rail Fall protection

Brochure

X-Rail Fall Protection technical

Product information

X-Rail Fall protection

Assembly instruction

Technical Specifications

Our X-Rail fall protection system can be used as an edge protection for mezzanine floors. The system is a modification of our X-Guard range and therefore the system can fill dual purposes, mezzanine protection and machine guarding.

X-Rail 1400 mm can be used either without panels or with X-Guard Classic mesh panels.

Note! If no panel is used between the posts – Handrail, Knee rail and kick plate are used. If a panel is used between the posts, only the handrail and kickplate is mandatory.

View more View less
Related articles
A combination of posts, panels, handrails & kick plates. All from one supplier!

22 Jun 2023 • Warehouse, Infographic, Fall protection

A combination of posts, panels, handrails & kick plates. All from one supplier!
The reasons to choose our fall protection X-Rail

20 Jun 2023 • Warehouse, Article, Fall protection

The reasons to choose our fall protection X-Rail

Related products

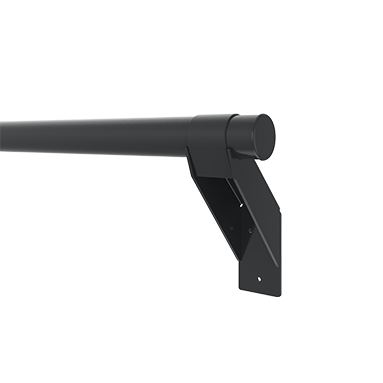

Handrail

Accessories

Handrail
7 Articles
Kickplate

Accessories

Kick plate
3 Articles

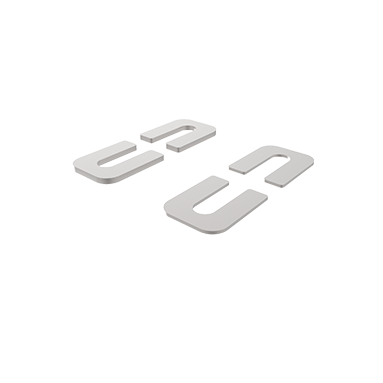

Shim set

Accessories

Shim set
3 Articles

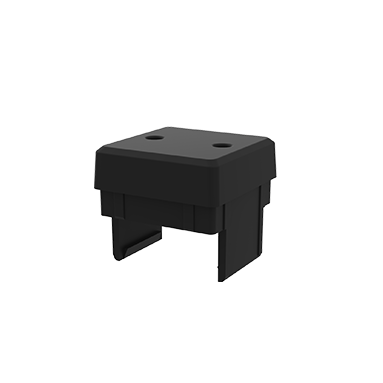

Top plug
