X-Tray for X-Guard

X-Tray for X-Guard

Bolt/Flange nut

3D

Only one bolt model is required for mounting your X-Tray system.

One M8 carriage bolt with a square shoulder to save you having to hold against when you tighten the nut. The bags are stand-up and re-closable.

Get your quote now
2761 Bolt/Flange nut
2762 Bolt/Flange nut
7100-070 Bolt/Flange nut
Select CAD Format
Bolt/Flange nut Bolt/Flange nut Bolt/Flange nut

Models

CAD Article Description Surface Treatment

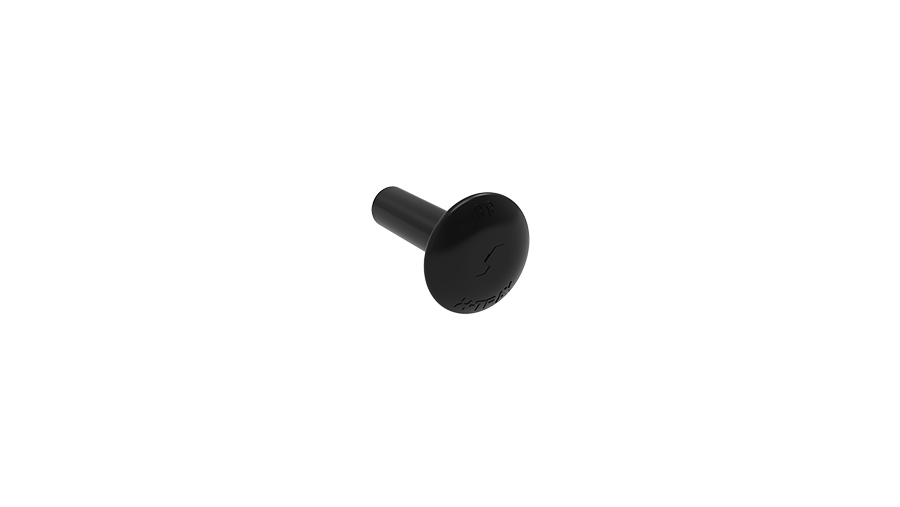

2761 X61 Bolt M8x27 Black Zink
1

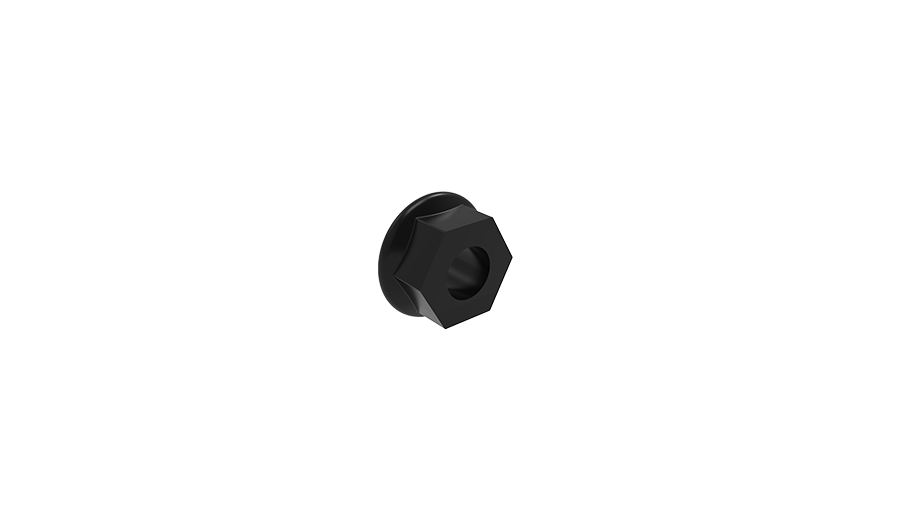

2762 X62 Flange Nut M8 Black Zink
1
7100-031 Expander Bolt M8x65 Zinc Plated
7100-070 Self drilling screw, washer head 4.2x19 Zinc Plated
1
View more View less
