Axelent is one of the market's leading manufacturers of machine guards. The complete system that we deliver meets current directives and standards.
Posts
The Classic 50x50 mm post comes in several heights and has an extension piece of 750 mm. Colours range from Zink yellow (RAL 1018), Graphite black (RAL 9011), Traffic red (RAL 3020) and Signal blue (RAL 5005). This post comes with a foot cover that hides the welded foot. It has a sleek design and...
Zink yellow | RAL 1018
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|

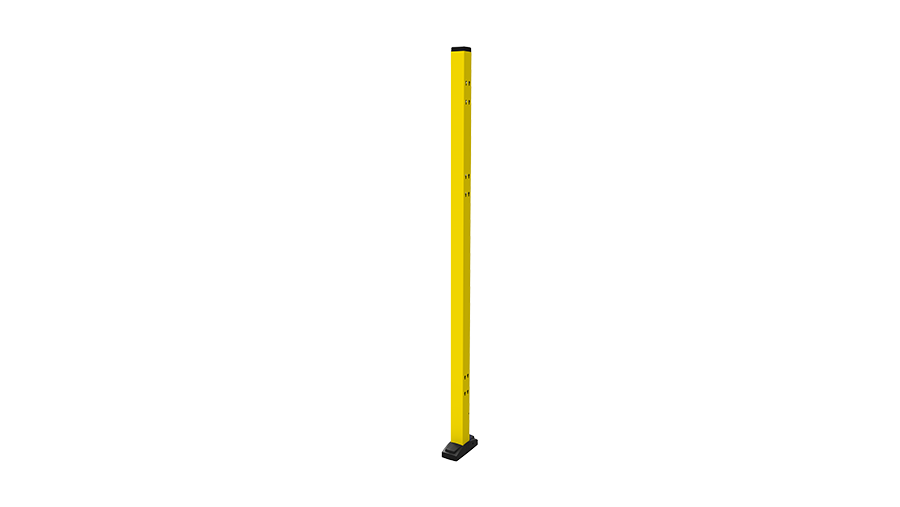

P11-140 | 1400 | Zinc Yellow (RAL 1018) |
1
|
|
|
P11-148 | 1480 | Zinc Yellow (RAL 1018) |
|
|
|
P11-200 | 2000 | Zinc Yellow (RAL 1018) |
|
|
|
P11-230 | 2300 | Zinc Yellow (RAL 1018) |
|
|
|
P11-250 | 2500 | Zinc Yellow (RAL 1018) |
|
Signal Blue | RAL 5005
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|

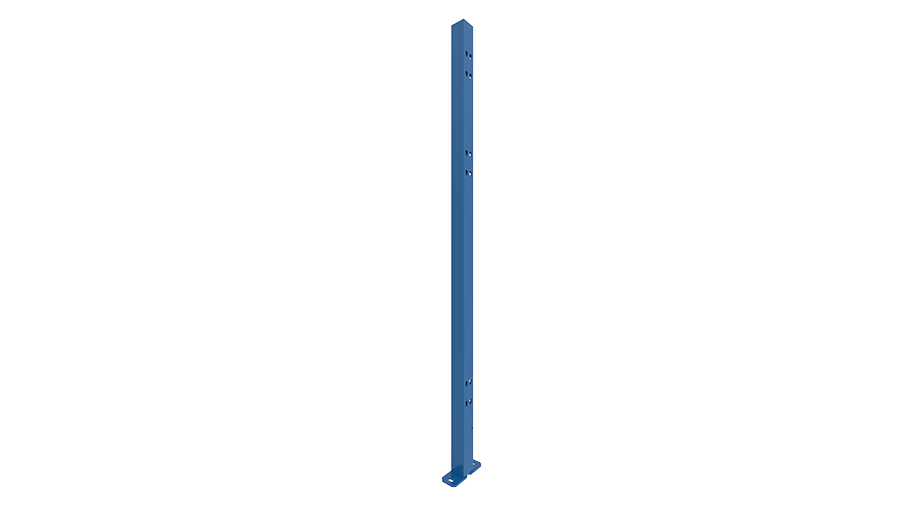

P21-140 | 1400 | Signal Blue (RAL 5005) |
1
|
|
|
P21-200 | 2000 | Signal Blue (RAL 5005) |
|
|
|
P21-230 | 2300 | Signal Blue (RAL 5005) |
|
|
|
P21-250 | 2500 | Signal Blue (RAL 5005) |
|
Graphite Black | RAL 9011
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|

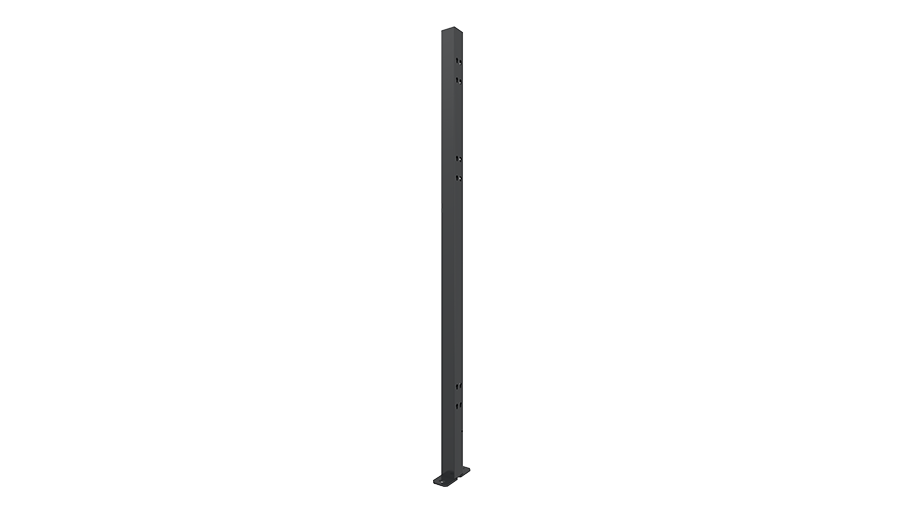

P31-140 | 1400 | Graphite Black (RAL 9011) |
1
|
|
|
P31-200 | 2000 | Graphite Black (RAL 9011) |
|
|
|
P31-230 | 2300 | Graphite Black (RAL 9011) |
|
|
|
P31-250 | 2500 | Graphite Black (RAL 9011) |
|
Traffic Red | RAL 3020
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|

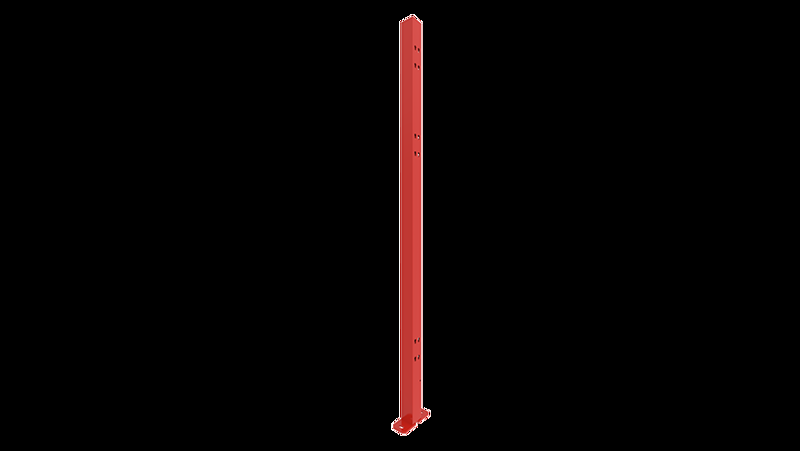

P71-140 | 1400 | Traffic Red (RAL 3020) |
1
|
|
|
P71-200 | 2000 | Traffic Red (RAL 3020) |
|
|
|
P71-230 | 2300 | Traffic Red (RAL 3020) |
|
|
|
P71-250 | 2500 | Traffic Red (RAL 3020) |
|
The Classic 50x50 mm post comes in several heights and has an extension piece of 750 mm. Colours range from Zink yellow (RAL 1018), Graphite black (RAL 9011), Traffic red (RAL 3020) and Signal blue (RAL 5005).
This post comes with a foot cover that hides the welded foot. It has a sleek design and makes cleaning so much easier.
The posts have holes punched on three sides to facilitate fitting, and a floor gap of 100 mm. Top plugs and expansion bolts for floor fixing are included with the posts.
