Mesh panel Contour

3D

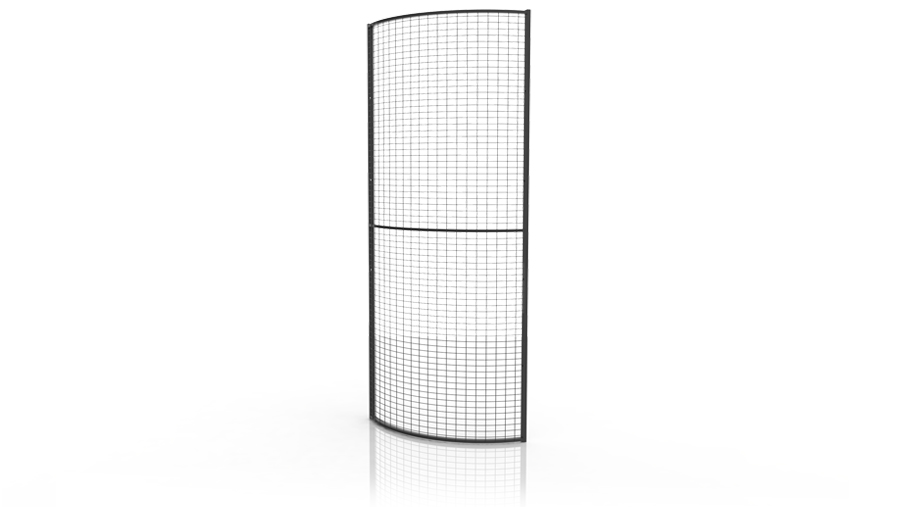

X-Guard mesh panel Contour has rounded corners, making it not only the perfect solution for confined but also sleek in design. These panels come in four heights and 90° angle. The mesh requires a minimum safety distance of 200 mm. All panels have a 30x20 mm frame with factory-fixed brackets to fa...

Read more
Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

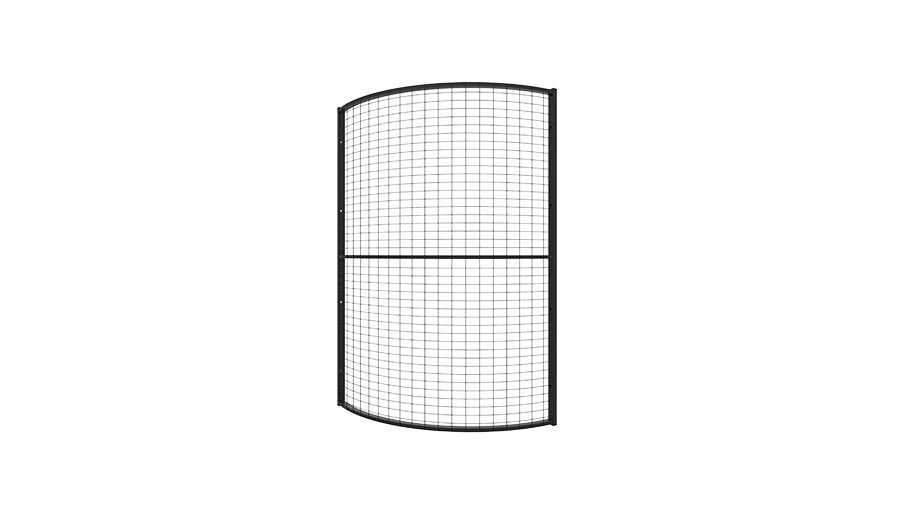

W32R90-130 Mesh panel Contour

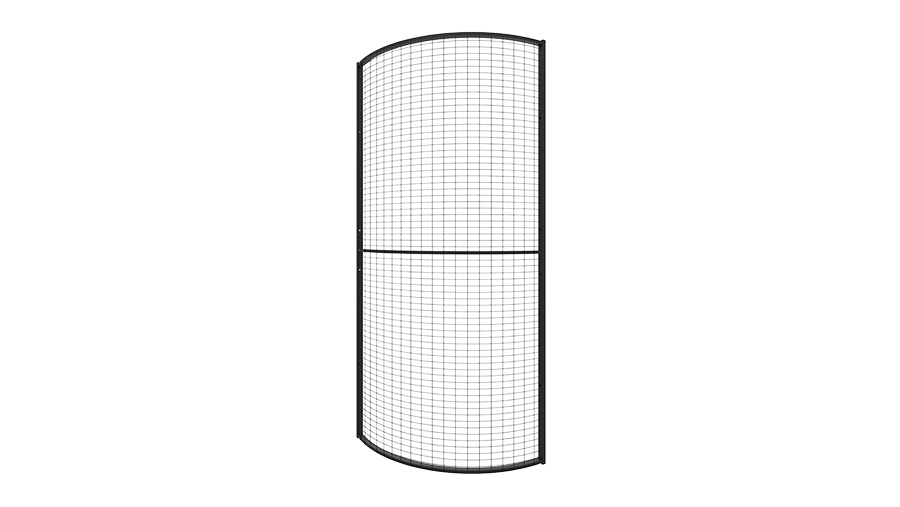

W32R90-190 Mesh panel Contour

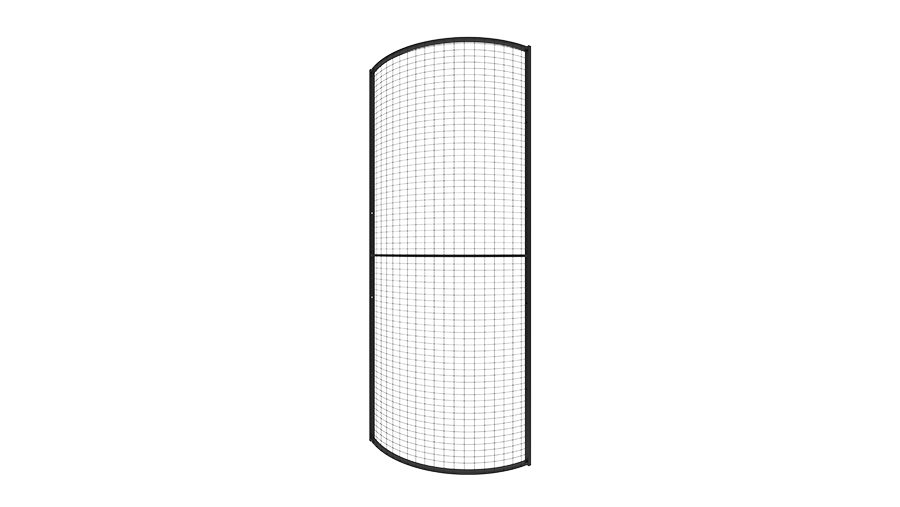

W32R90-220 Mesh panel Contour
W32R90-240 Mesh panel Contour
Select CAD Format
1/4 Mesh panel Contour 2/4 Mesh panel Contour 3/4 Mesh panel Contour 4/4 Mesh panel Contour

Models

  • Contour

    4 Articles
    CAD Article Description Height (mm) Mesh Aperture
    		W32R90-130 90° 1300 50x30
    1
    		W32R90-190 90° 1900 50x30
    1
    		W32R90-220 90° 2200 50x30
    1
    		W32R90-240 90° 2400 50x30
    1
    View more View less

Downloads

X-Guard Contour

Assembly instruction

X-Guard Technical

Brochure

Product information

X-Guard mesh panel Contour has rounded corners, making it not only the perfect solution for confined but also sleek in design. These panels come in four heights and 90° angle. The mesh requires a minimum safety distance of 200 mm. All panels have a 30x20 mm frame with factory-fixed brackets to facilitate assembly.

The mesh consists of vertical wires of Ø 3 mm and horizontal wires of Ø 2.5 mm.

The standard panel colour is black (RAL 9011) but customised colours are available upon request.

View more View less
See the product in Axelent Xperience
Related articles
Knowledge grows when shared

15 Oct 2024 • News, Machine Safety, Safety Book, Axelent Safety Group, Pedestrian barrier

Knowledge grows when shared
How to Install Safety Fence: Warehouse Machine Guarding Solutions

25 Sep 2024 • Knowledge, World of Axelent, Article, Machine Safety, Mesh shelving, X-Protect

How to Install Safety Fence: Warehouse Machine Guarding Solutions

Related products

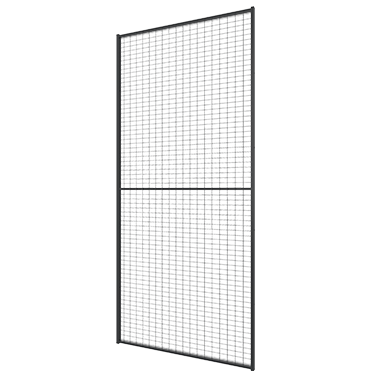

Mesh panel

Panels

Mesh panel
75 Articles

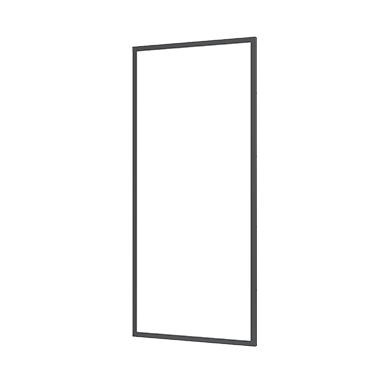

Plastic panel

Panels

Plastic panel
12 Articles

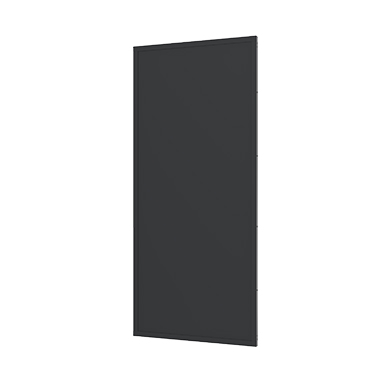

Sheet metal panel

Panels

Sheet metal panel
10 Articles

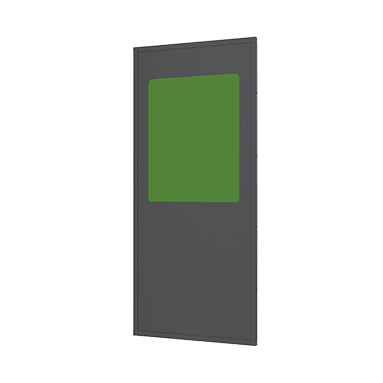

Sheet metal panel with window
