Doors

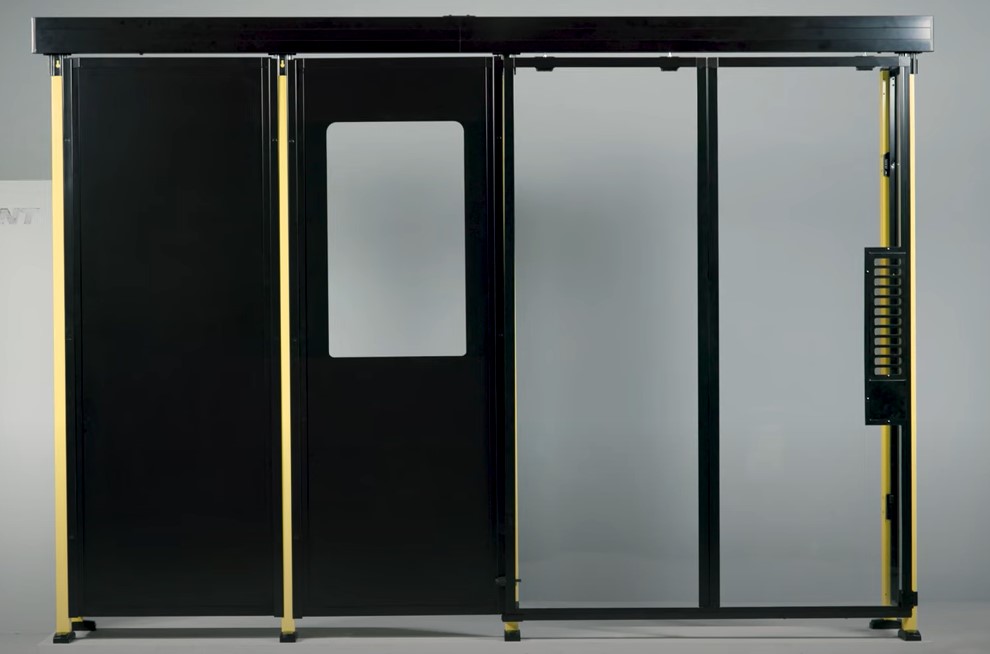

Single sliding door

3D

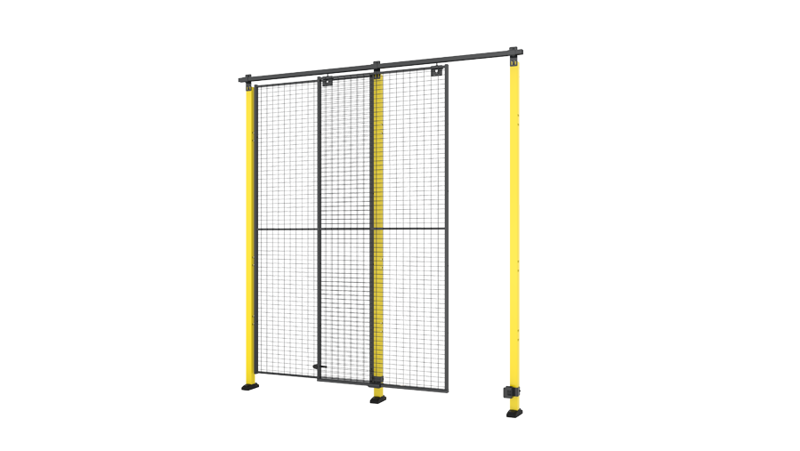

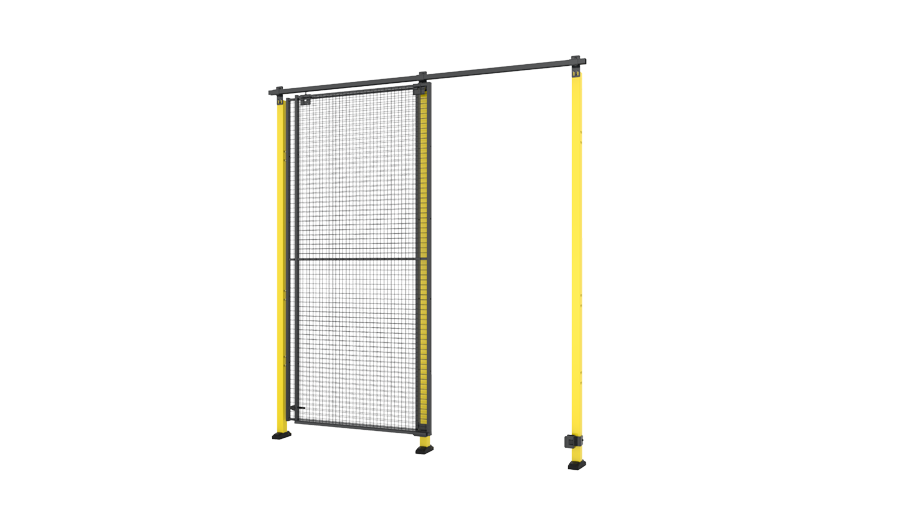

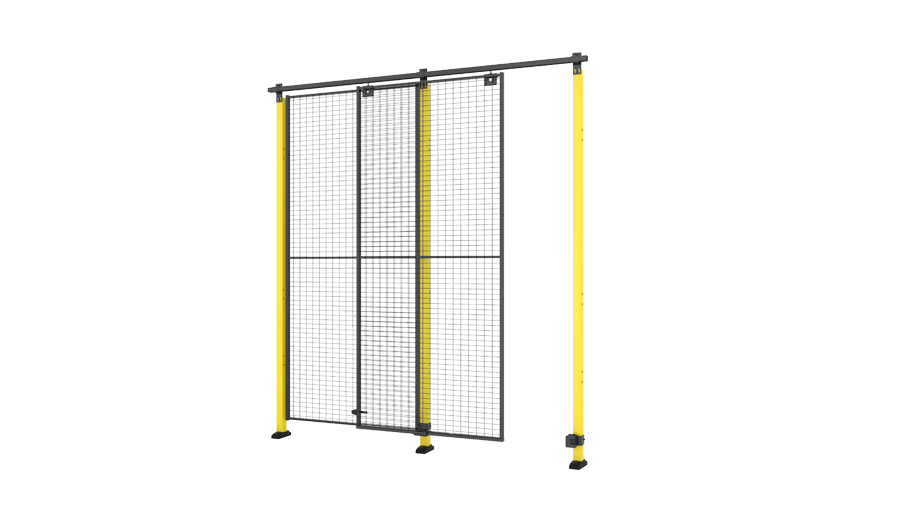

A single sliding door is usually used where there is not enough space to open a side-hinged door for normal access and where just a single section is required opened.

Get your quote now

Models

  • Height max 2500 mm

    16 Articles
    CAD Article Description Width (mm) Max Width (mm) Height (mm) Max Height (mm) Panel Fits Posts

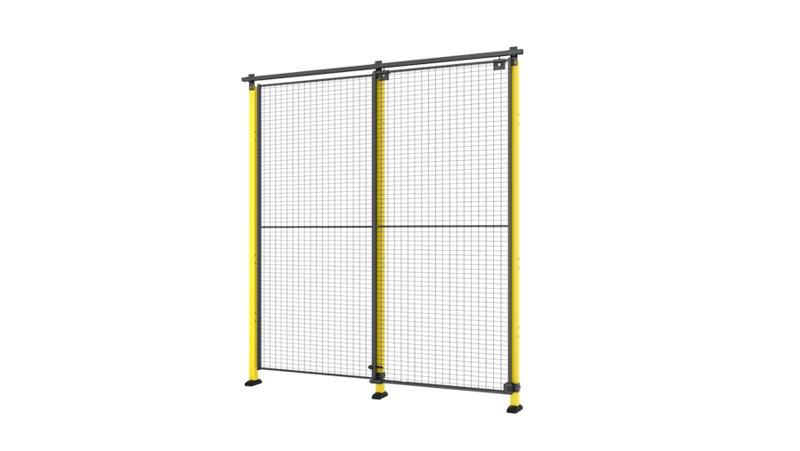

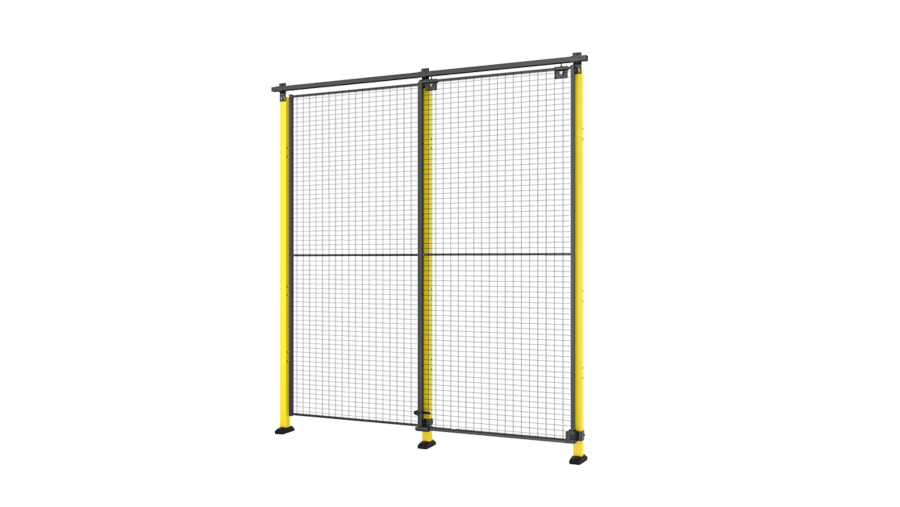

    D20-XXX100A Single sliding door 880 2500 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    3 1
    D20-XXX140A Single sliding door 1380 2500 Mesh
    Plastic
    Sheet metal
    Classic 50x50
    5 1
    D20-XXX220A Single sliding door 2100 2500 Mesh Classic 50x50
    1 2
    D20-XXX310A Single sliding door 3000 2500 Mesh Classic 50x50
    1
    D20-XXX570A Single sliding door 5700 2500 Mesh Classic 50x50
    1 2
    D40-XXX100A Single sliding door 890 2500 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    5 1
    D40-XXX140A Single sliding door 890 2500 Mesh
    Plastic
    Sheet metal
    Premium 70x70
    2 1
    D40-XXX220A Single sliding door 2100 2500 Mesh Premium 70x70
    1 2
    D40-XXX310A Single sliding door 3000 2500 Mesh Premium 70x70
    2
    D40-XXX570A Single sliding door 5700 2500 Mesh Premium 70x70
    2

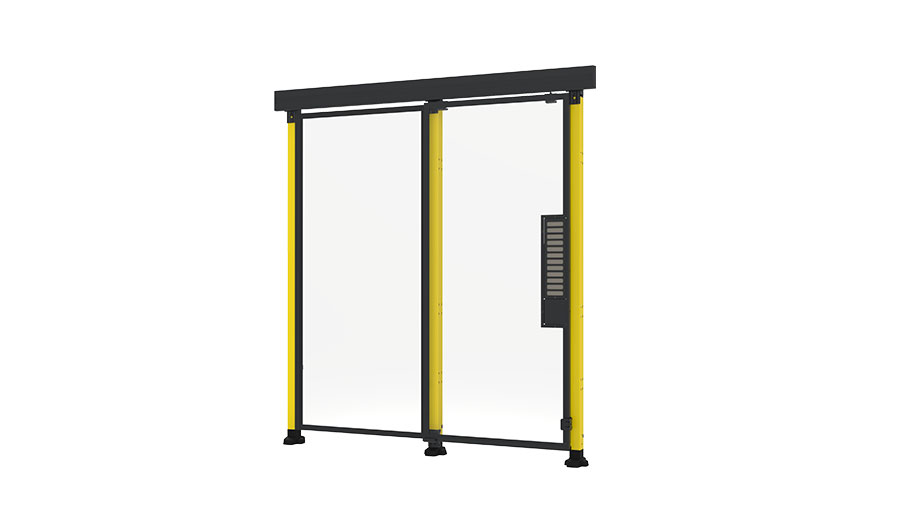

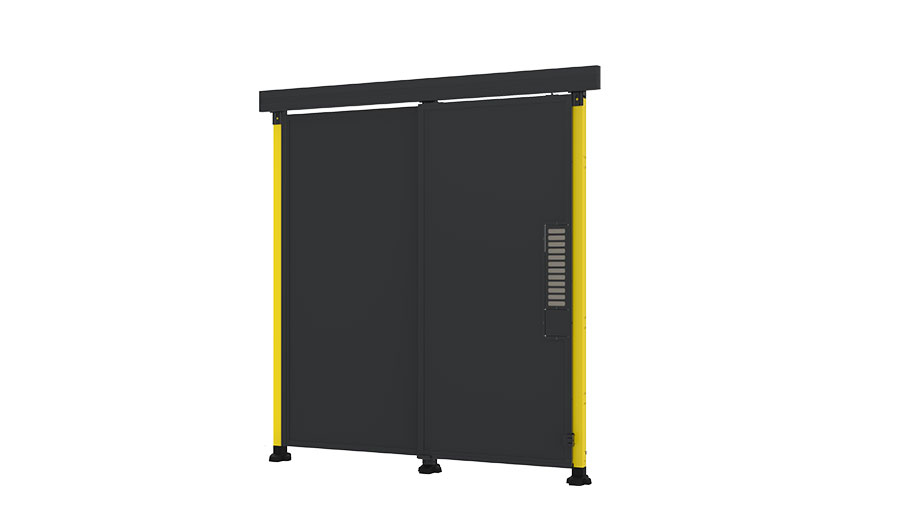

    DP20-XXX220A Single sliding door with upper frame 2080 2500 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP20-XXX310A Single sliding door 2980 2500 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP20-XXX570A Single sliding door 5880 2500 Plastic
    Sheet metal
    Classic 50x50
    2 2
    DP40-XXX220A Single sliding door with upper frame 2090 2500 Plastic
    Sheet metal
    Premium 70x70
    4 2
    DP40-XXX310A Single sliding door 2990 2500 Plastic
    Sheet metal
    Premium 70x70
    2 2
    DP40-XXX570A Single sliding door 5890 2500 Plastic
    Sheet metal
    Premium 70x70
    2 2
  • Height min 2755 mm

    10 Articles
    CAD Article Description Width (mm) Height (mm) Panel Fits Posts
    D20-XXX100B Single sliding door 1000 2755 Mesh Classic 50x50
    1
    D20-XXX140B Single sliding door 1400 2755 Mesh Classic 50x50
    1
    D20-XXX220B Single sliding door 2200 2755 Mesh Classic 50x50
    1
    D20-XXX310B Single sliding door 3000 2755 Mesh Classic 50x50
    1
    D20-XXX570B Single sliding door 5700 2755 Mesh Classic 50x50
    1
    D40-XXX100B Single sliding door 1000 2755 Mesh Premium 70x70
    1
    D40-XXX140B Single sliding door 1400 2755 Mesh Premium 70x70
    1
    D40-XXX220B Single sliding door 2200 2755 Mesh Premium 70x70
    1
    D40-XXX310B Single sliding door 3000 2755 Mesh Premium 70x70
    1
    D40-XXX570B Single sliding door 5700 2755 Mesh Premium 70x70
    1

Downloads

X-Guard Technical

Brochure

Technical Specifications

A single sliding door is usually used where there is not enough space to open a side-hinged door for normal access and where just a single section is required opened.

The maximum opening width for sliding doors is 5700 mm. *The maximum width varies depending on the used locking solution.

(Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)
