Doors

Single hinge door

3D

Single sided-hinged doors are usually used as an access door, or as emergency exits depending on the lock mechanism selected.

Maximum width is 1500 mm. *The maximum width varies depending on the used locking solution. (Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

Get your quote now

Name *

Phone

Email *

Subject *

Message *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

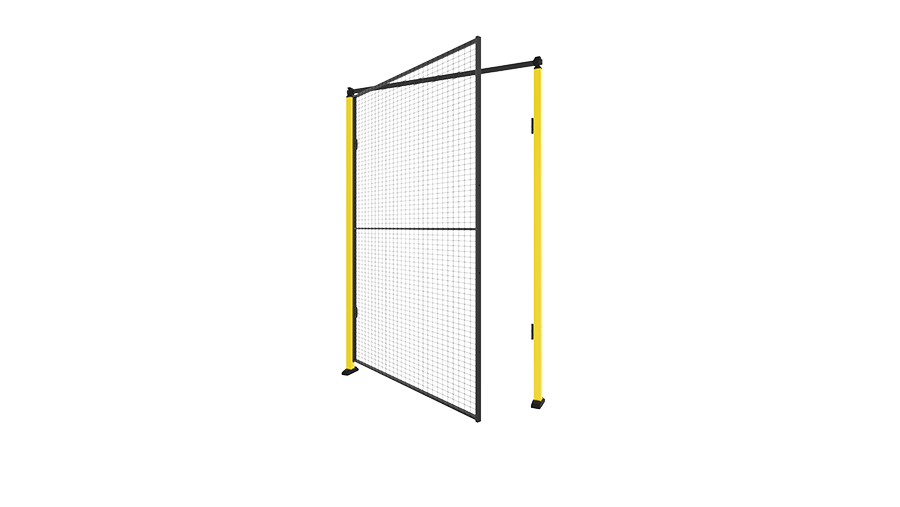

Single hinge door

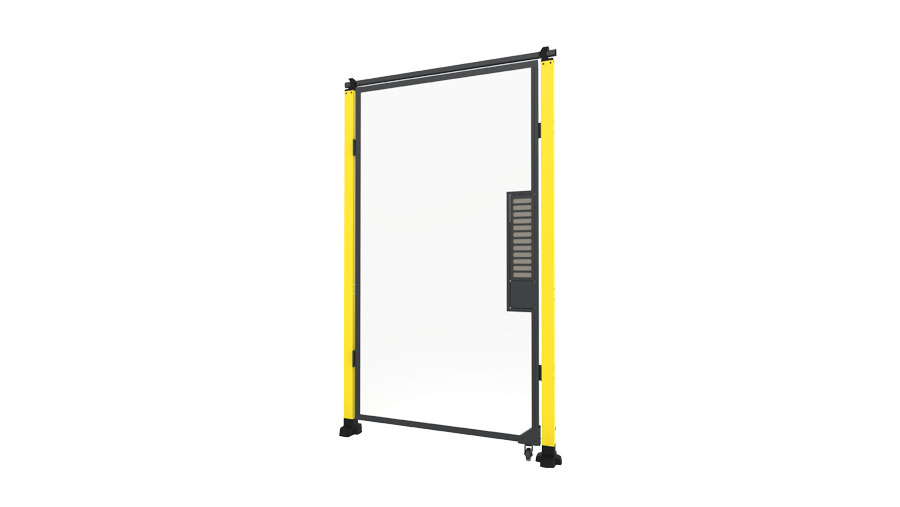

single hinge door for machine guarding with plastic panel

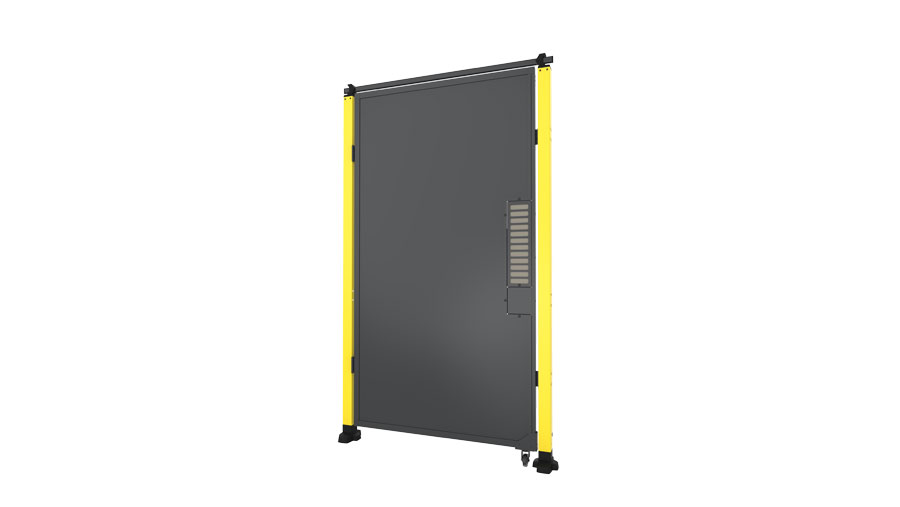

single hinge door for machine guarding with sheet metal panel

axelent shows how to install single hinge door for machine guarding

axelent mounting instruction rail fitting kit steel

Select CAD Format

Single hinge door

single hinge door for machine guarding with plastic panel

single hinge door for machine guarding with sheet metal panel

axelent shows how to install single hinge door for machine guarding

axelent mounting instruction rail fitting kit steel

Single hinge door

Models

Height max 2500

CAD	Article	Description	Max Width (mm)	Max Height (mm)	Panel	Fits Posts
	D10-XXX150A	Single hinge door with upper frame	1455	2500	Mesh	Classic 50x50	1 2
	D11-XXX150A	Single hinge door w/o upper frame	1455	2500	Mesh	Classic 50x50	1 2
	D30-XXX150A	Single hinge door with upper frame	1455	2500	Mesh	Premium 70x70	2 2
	DP10-XXX150A	Single hinge door with upper frame	1455	2500	Plastic Sheet metal	Classic 50x50	2 2
	DP11-XXX150A	Single hinge door w/o upper frame	1455	2500	Plastic Sheet metal	Classic 50x50 Premium 70x70	2 2
	DP30-XXX150A	Single hinge door with upper frame	1455	2500	Plastic Sheet metal	Premium 70x70	2 2

View more View less

Height min 2755

CAD	Article	Description	Max Width (mm)	Min Height (mm)	Panel	Fits Posts
	D10-XXX150B	Single hinge door with upper frame	1455	2755	Mesh	Classic 50x50	1 2
	D11-XXX150B	Single hinge door w/o upper frame	1455	2755	Mesh	Classic 50x50	1 2
	D30-XXX150B	Single hinge door with upper frame	1455	2755	Mesh	Premium 70x70	2 2

View more View less
