Doors

Double hinge door

3D

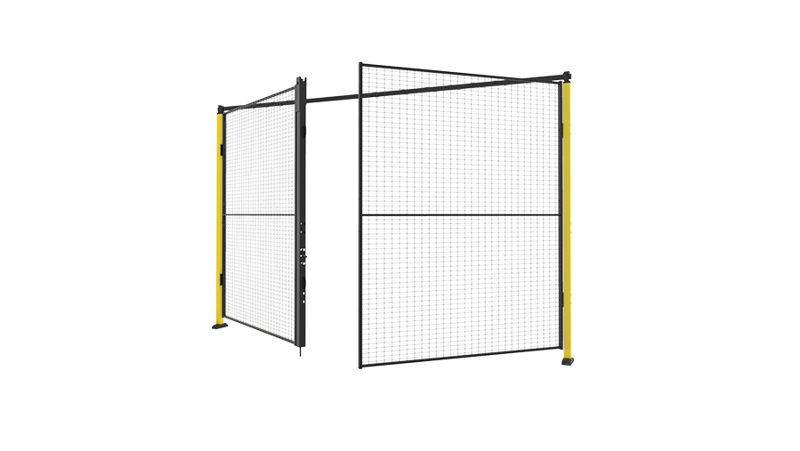

A double sided-hinged door can be used as an access door and for bringing goods in and out. X-Guard Double hinge door is available in several different heights.

*The maximum width varies depending on the used locking solution. (Posts, handles and panels are not included in the door package. Opening dimensions may be limited depending on the type of lock chosen.)

Get your quote now
Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Models

  • Height 1400 mm

    1 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D12-140300 Double hinge door without upper frame 3100 1400 Mesh Classic 50x50
    1
  • Height 2000 mm

    2 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts

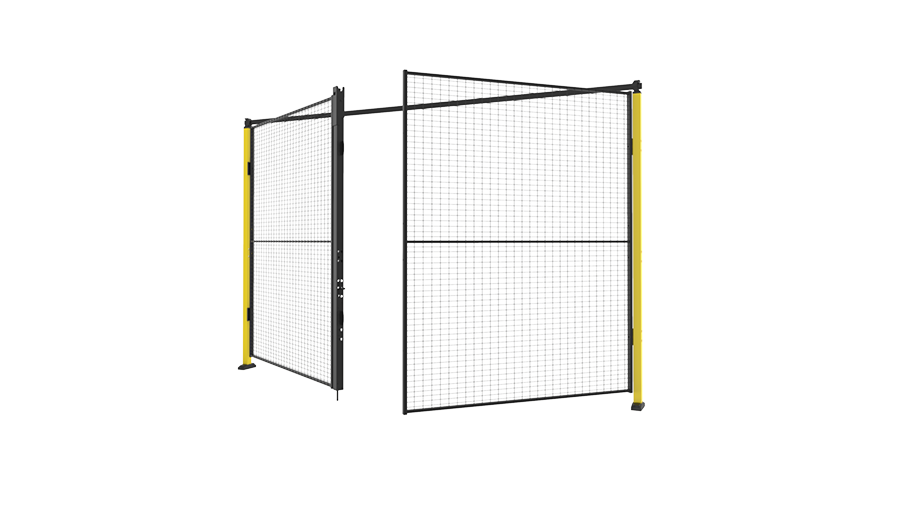

    D12-200300 Double hinge door with upper frame 3100 2000 Mesh Classic 50x50
    1 1
    D32-200300 Double hinge door with upper frame 3000 2000 Mesh Premium 70x70
    1
  • Height 2300 mm

    4 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D12-230300 Double hinge door with upper frame 3100 2300 Mesh Classic 50x50
    1
    D32-230300 Double hinge door with upper frame 3000 2300 Mesh Premium 70x70
    1

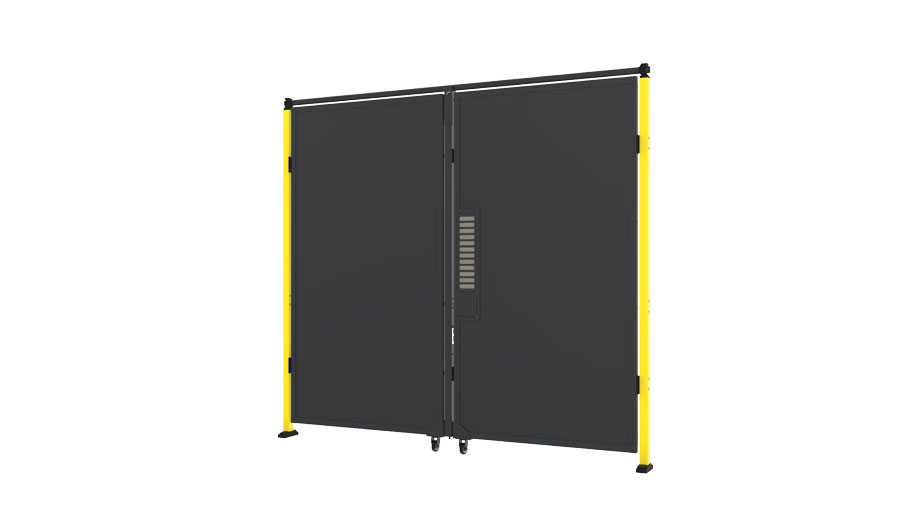

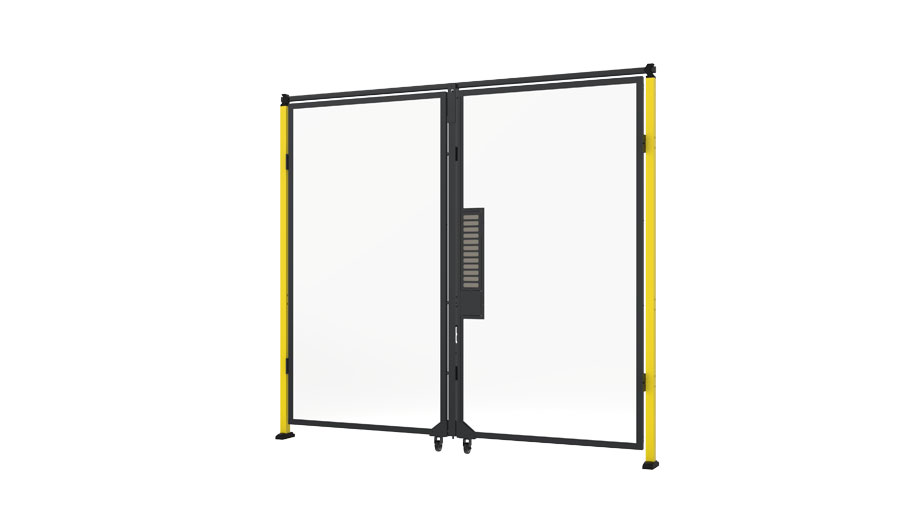

    DP12-230300 Double hinge door with upper frame 3100 2300 Plastic
    Sheet metal
    Classic 50x50
    2 1
    DP32-230300 Double hinge door with upper frame 3000 2300 Plastic
    Sheet metal
    Premium 70x70
    2 1
  • Height 2500 mm

    1 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D12-250300 Double hinge door with upper frame 3100 2500 Mesh Classic 50x50
    1
  • Height 2750 mm

    2 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D12-275300 Double hinge door with upper frame 3100 2750 Mesh Classic 50x50
    1
    D32-275300 Double hinge door with upper frame 3000 2750 Mesh Premium 70x70
    1
  • Height 3050 mm

    2 Articles
    CAD Article Description Max Opening Width (mm) Max Height (mm) Panel Fits Posts
    D12-305300 Double hinge door with upper frame 3100 3050 Mesh Classic 50x50
    1
    D32-305300 Double hinge door with upper frame 3000 3050 Mesh Premium 70x70
    1

Downloads

D12_DP12_D32_DP32-XXX300

Assembly instruction

X-Guard Technical

Brochure
