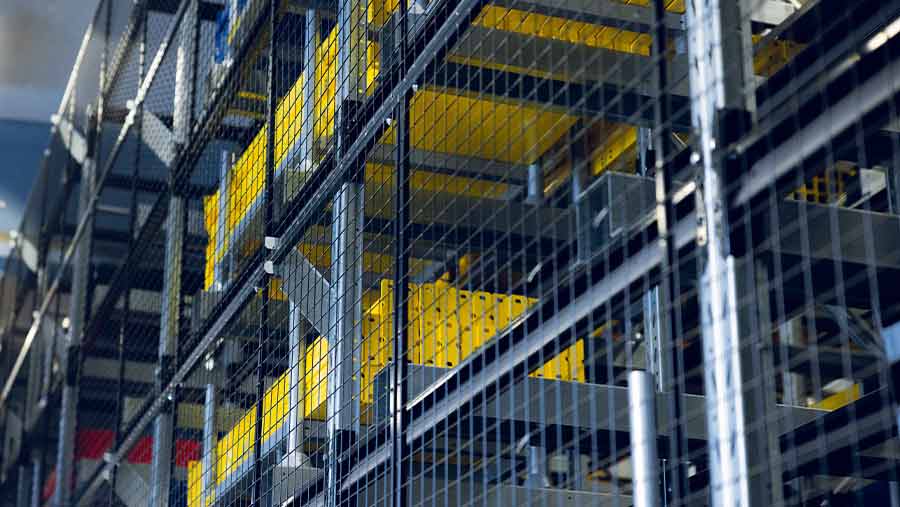

Axelent is one of the market's leading manufacturers of machine guards. The complete system that we deliver meets current directives and standards.

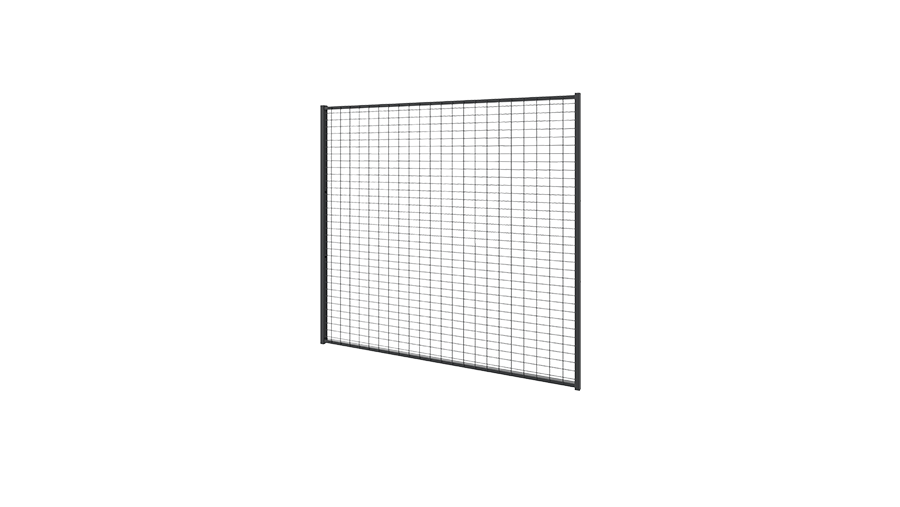

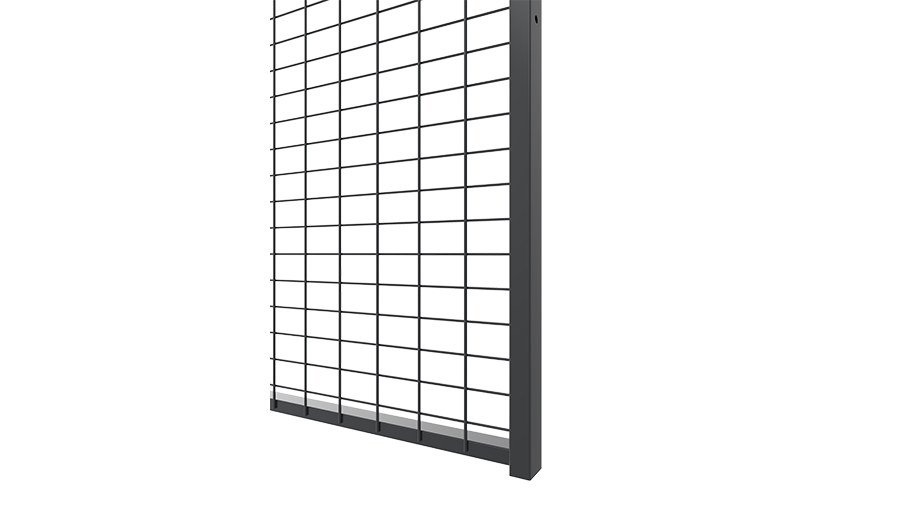

Mesh panels

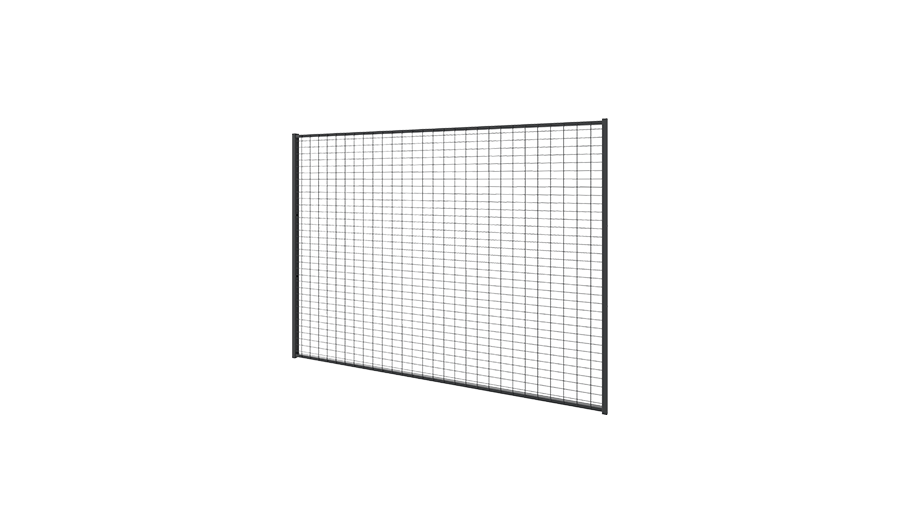

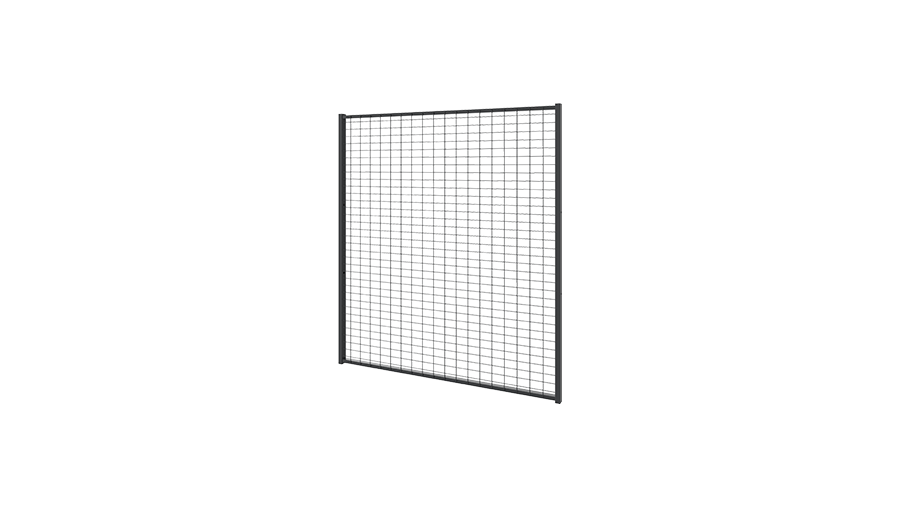

The mesh section is available in two widths, 1100 mm and 2200 mm and three heights. The standard section colour is RAL 9011 (black). We can however supply panels in the colours customers require.
Width 1100 mm
| CAD | Article | Height x Width (mm) | Mesh Aperture | |
|---|---|---|---|---|
|
|
312-100110 | 1000x1100 | 50x30 |
1
|
|
|
312-120110 | 1200x1100 | 50x30 |
2
|
|
|
312-150110 | 1500x1100 | 50x30 |
1
|

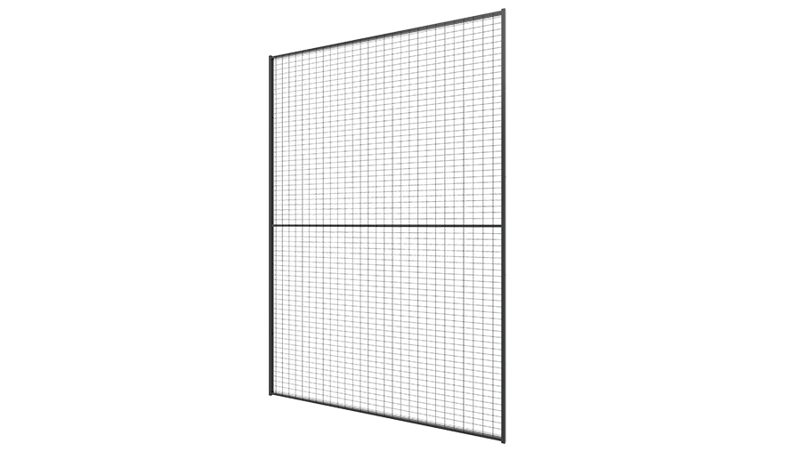

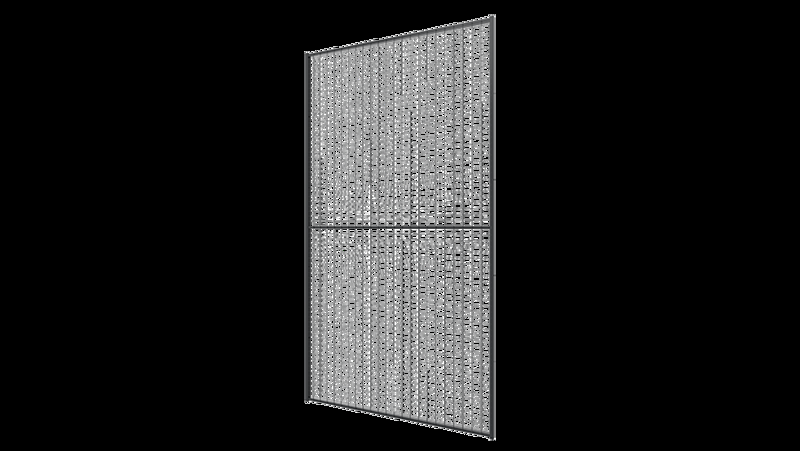

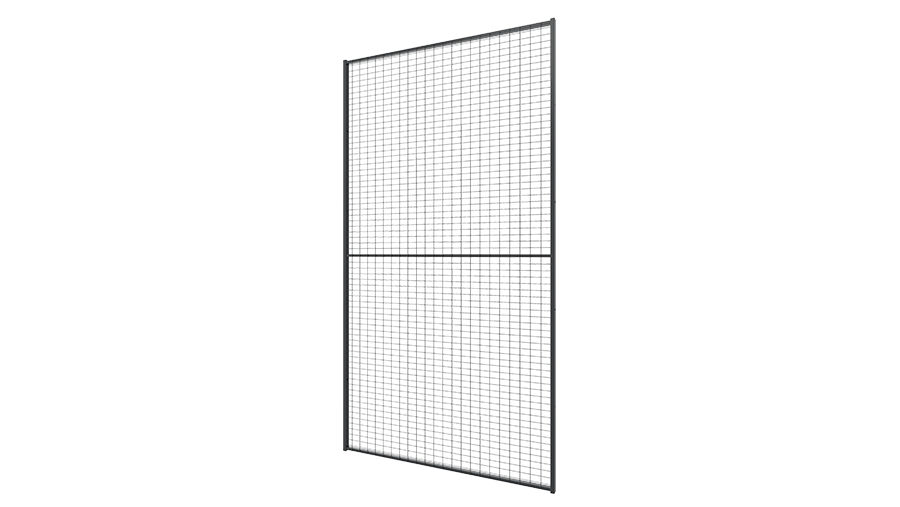

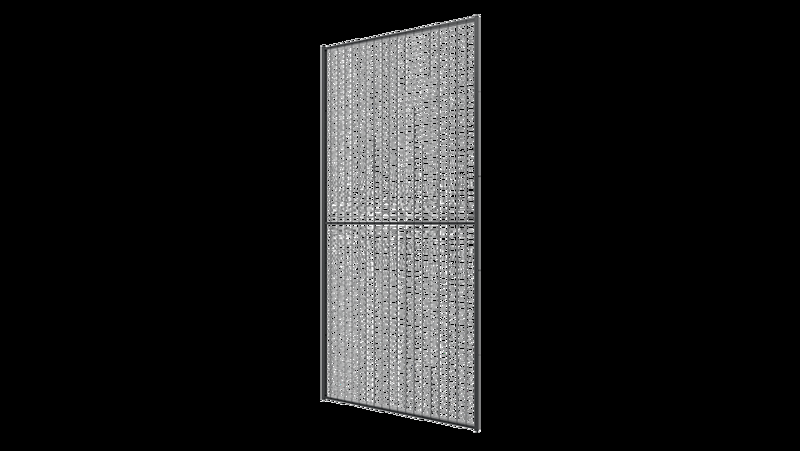

Width 2200 mm
| CAD | Article | Height x Width (mm) | Mesh Aperture | |
|---|---|---|---|---|
|
|

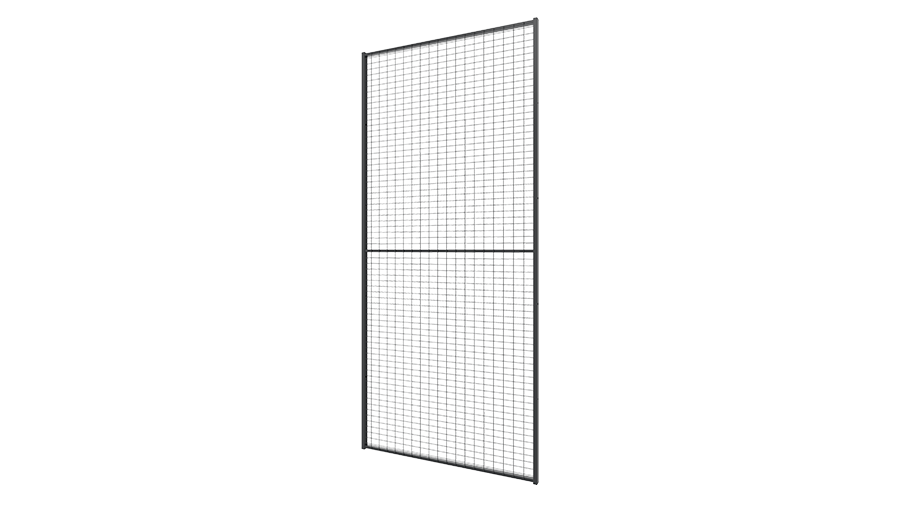

312-100220 | 1000x2200 | 50x30 |
1
|
|
|
312-120220 | 1200x2200 | 50x30 |
1
|
|
|

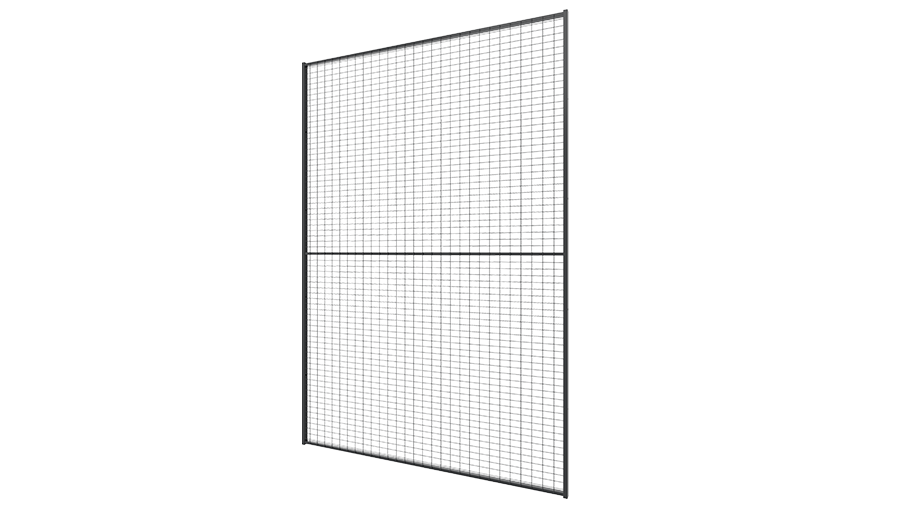

312-150220 | 1500x2200 | 50x30 |
1
|
The mesh section is available in two widths, 1100 mm and 2200 mm and three heights. The standard section colour is RAL 9011 (black).
We can however supply panels in the colours customers require.
Post extensions are available as an accessory. This makes it possible to mount the anti-tip protection higher than the post itself.

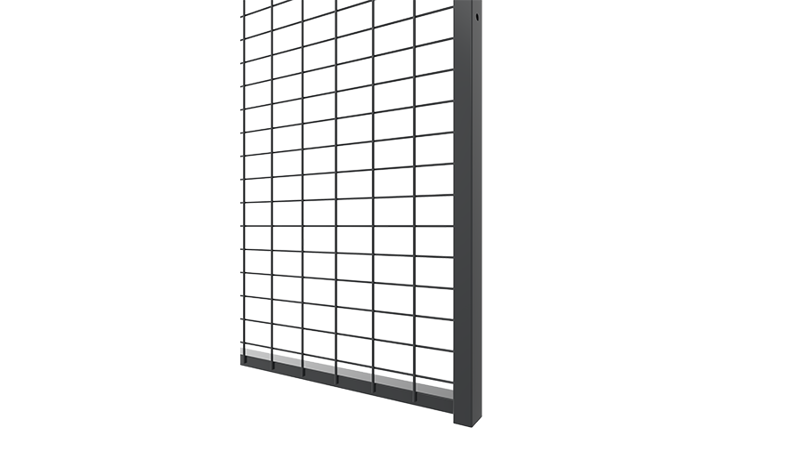

| Uprights | 15x15 mm |
| Horizontals | 19x19 mm |
| Vertical wires | Ø 2,5 mm |
| Horizontal wires | Ø 3 mm |
| Mesh aperture | 50x30 mm |

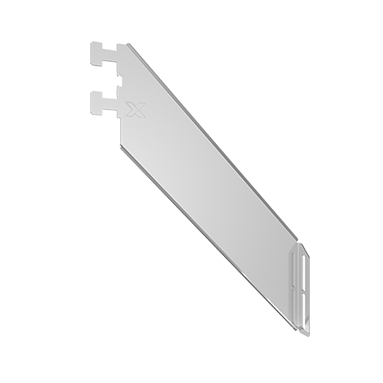

| Brackets | 3 mm sheet metal, elongated holes for vertical adjustment |
| Finish | Phosphatising/Epoxy paint |
| Colour mesh panel | Light grey RAL 9018, black RAL 9011 |
| Colour bracket | Light grey RAL 9018, silver RAL 9006, |
|
sendzimir galvanized |
