Pedestrian barriers

Pedestrian

3D

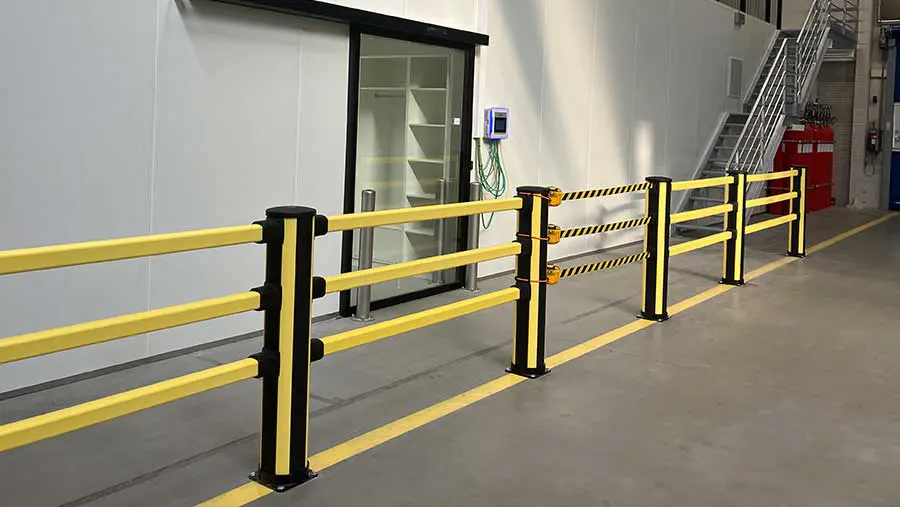

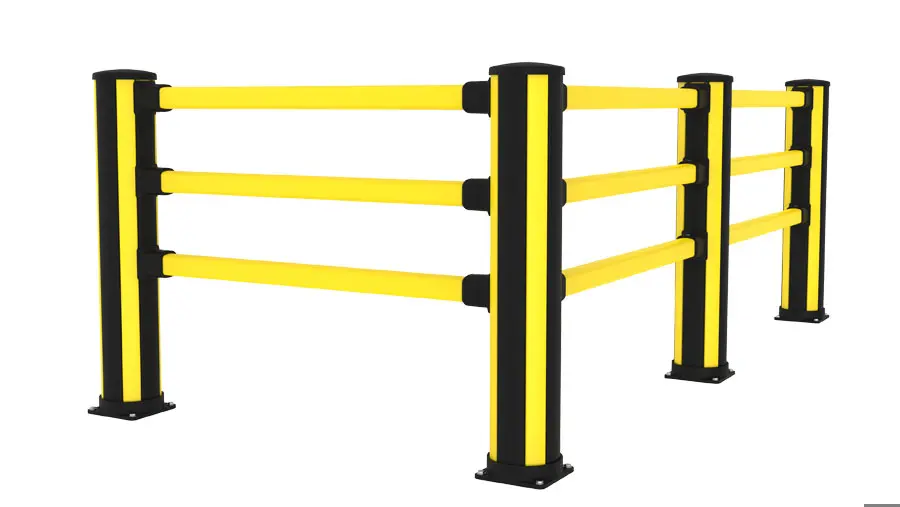

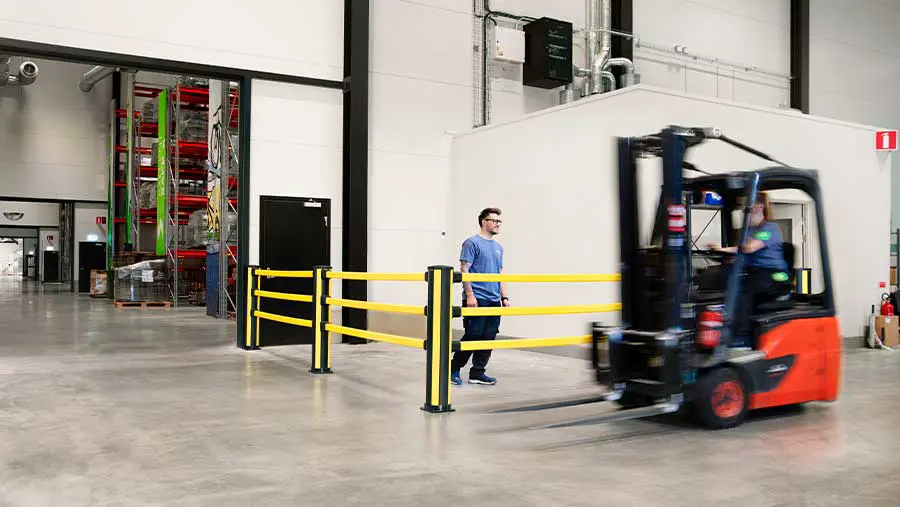

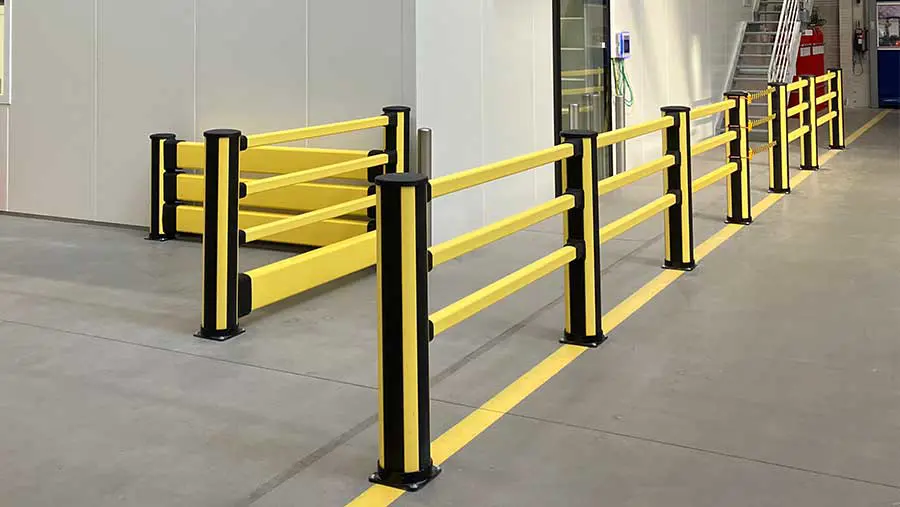

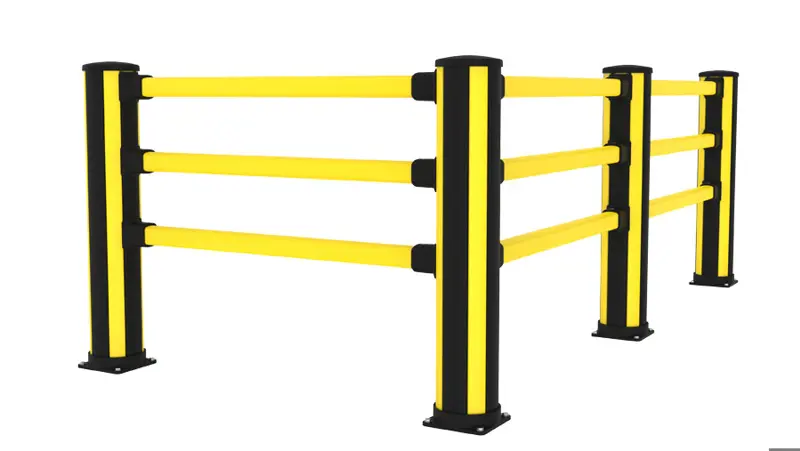

Use the X-Protect Pedestrian barrier configuration to define pedestrian routes and protect from light duty impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.

Get your quote now

Models

CAD Article Description Height (mm) Length (mm) CC (mm) Color
BCE0-116-00P3 Pedestrian end 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCE1-116-00P3 Pedestrian end 1160 Zinc Yellow (RAL 1018)
BCM0-116-00P3 Pedestrian mid 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCM1-116-00P3 Pedestrian mid 1160 Zinc Yellow (RAL 1018)
BCC0-116-00P3 Pedestrian corner 1160 Zinc Yellow (RAL 1018)
Graphite Black (RAL 9011)
1
BCC1-116-00P3 Pedestrian corner 1160 Zinc Yellow (RAL 1018)
RCP1-027-0050 Hand rail 270 500 Zinc Yellow (RAL 1018)
RCP1-047-0070 Hand rail 470 700 Zinc Yellow (RAL 1018)
RCP1-077-0100 Hand rail 770 1000 Zinc Yellow (RAL 1018)
RCP1-127-0150 Hand rail extrusion, C-C=1500mm, RAL 1018 yellow 1270 1500 Zinc Yellow (RAL 1018)
RCP1-177-0200 Hand rail extrusion 1170 2000 Zinc Yellow (RAL 1018)
RCP1-227-0250 Hand rail 2270 2500 Zinc Yellow (RAL 1018)
GCP8-069-0121
2

Downloads

X-Protect Pedestrian

Assembly instruction

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

Use the X-Protect Pedestrian barrier configuration to define pedestrian routes and protect from light duty impacts. It is also possible to combine with a pedestrian gate. The pedestrian gate is self closing, provided with a universal handle and width is adjustable from 690-1210 mm.



X-Protect is a unique approach to safety barriers. Unrivalled modularity, using only a few system components and damping that is built in to create a barrier system that changes with your work place. X-Protect allows rapid transformation, repair or replacement of existing barriers and bespoke configurations are limitless.
