Essential Pedestrian with three rails

The X-Protect Essential Pedestrian Barrier with Three Rails provides added impact resistance and visibility for safe, well-defined walkways. Ideal for light-duty zones, it enhances separation between people and vehicles while keeping layouts open and efficient.

Get your quote now

Name *

Phone

State *

Email *

Subject *

Message *

I have taken note of Axelent's data protection policy, which you can read here.

I agree that Axelent will process my personal information to contact me.

Design safety solutions

Design your safety solutions in our drawing tool, Safety Design

Essential pedestrian with three rails stand alone

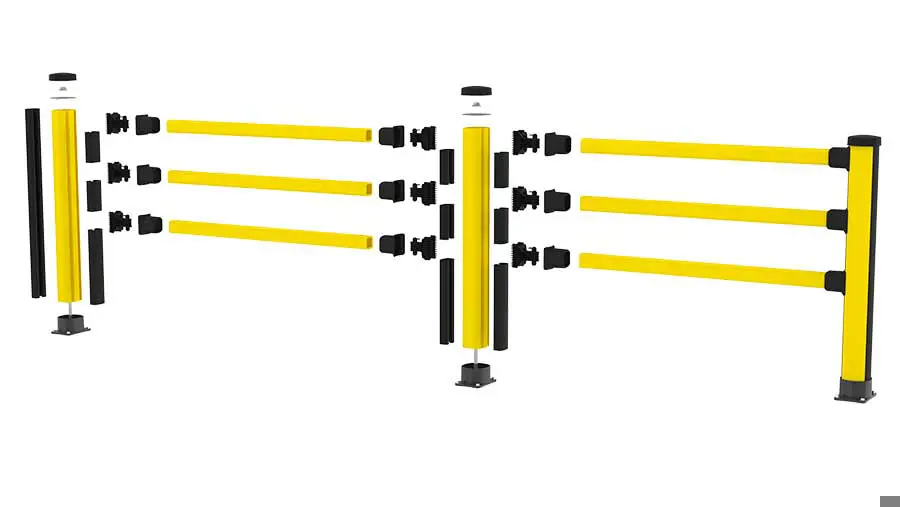

Essential pedestrian with three rails exploded

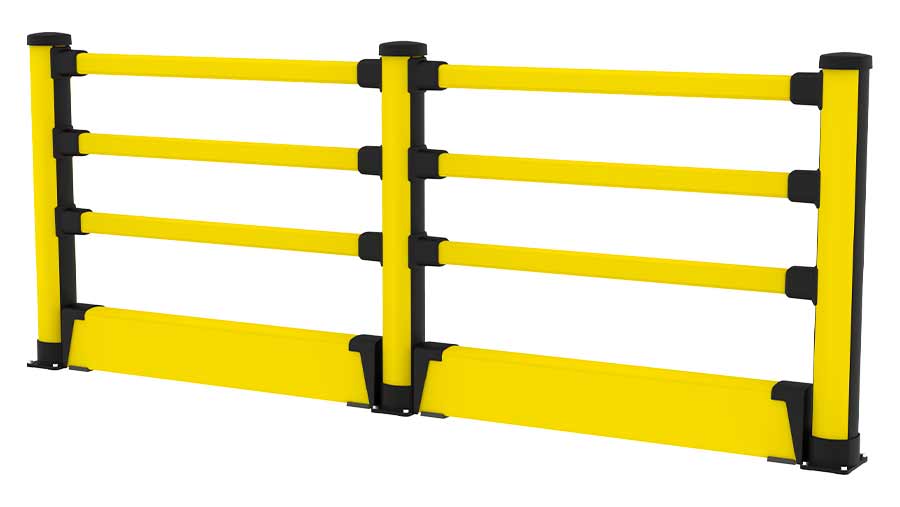

Essential pedestrian with three rails and floor barrier configuration

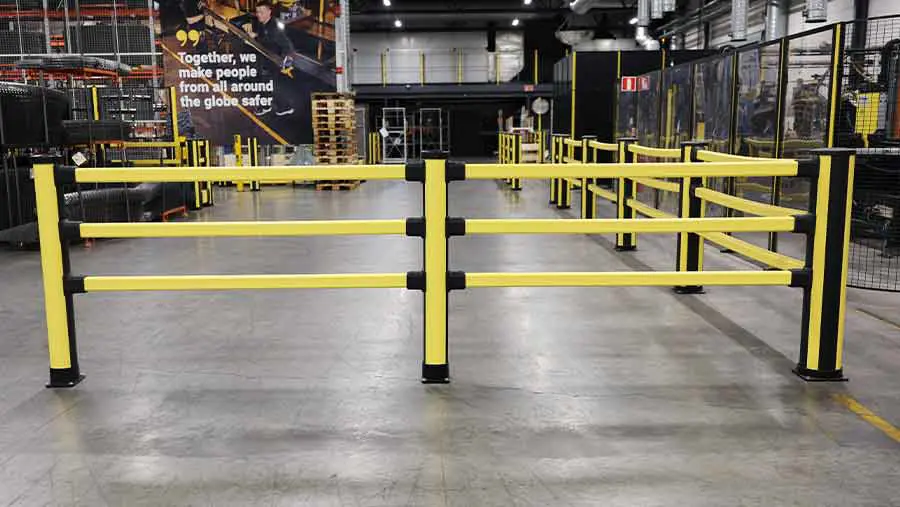

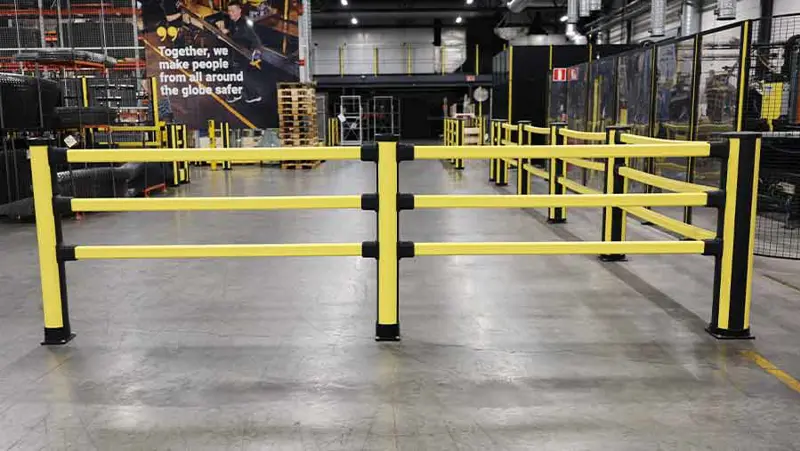

Essential Pedestrian Three Rails Configuration Live Environment

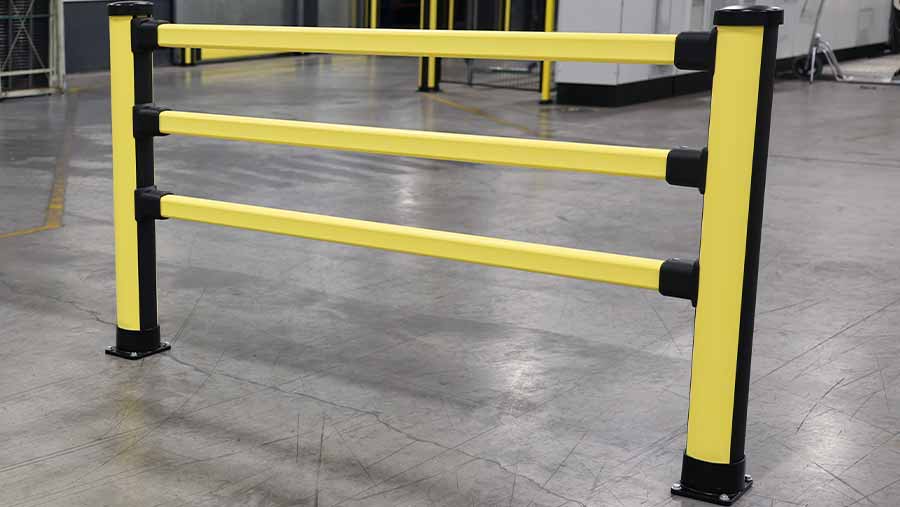

Essential Pedestrian Three Rails Stand Alone Live Environment

Essential pedestrian barrier assembly movie

Essential pedestrian barrier with classic post connection assembly movie

Select CAD Format

1/7

2/7

3/7

4/7

5/7

6/7

7/7

Models

Posts

3 Articles

Article	Description	Height (mm)	CC (mm)	Other
BEE0-117-00P3	End post	1170	2000	Compatible with the Floor Barrier	1
BEM0-117-00P3	Mid post	1170	2000	Compatible with the Floor Barrier	1
BCC0-116-00P3	Corner post	1160	2000	Compatible with the Floor Barrier	1

View more View less

Hand rails

5 Articles

Article	Description	Length (mm)	CC (mm)
RCP1-177-0200	Hand rail extrusion	1170	2000	1
RCP1-127-0150	Hand rail extrusion, C-C=1500mm, RAL 1018 yellow	1250	1500
RCP1-077-0100	Hand rail	770	1000	1
RCP1-047-0070	Hand rail	470	700	1
RCP1-027-0050	Hand rail	270	500	1

View more View less

Downloads

Essential Pedestrian with three rails

Product information

X-Protect | Impact protection

Brochure

X-Protect Technical | Impact protection

Brochure

Product information

The Essential Pedestrian Barrier with Three Rails provides an enhanced level of protection for areas where additional height and visibility are required. Designed for light-duty impact zones, it creates safe, well-defined walkways while maintaining an open and efficient layout.

To further improve site safety, the Floor Barrier can be integrated into this configuration. It acts as a solid base element that reinforces the lower section of the system, offering additional protection against ground-level risks such as vehicle forks, pallets and debris. This combination provides a continuous barrier line that enhances both visibility and impact resistance while maintaining smooth traffic flow between zones.

Installation is quick and efficient, with minimal fixings required and no unnecessary stress on the floor surface.

Key features

Fast to install
Kind to the floor
Easy to repair

Impact test results
Area of impact	Load	Equivalent to		90° Deflection	Force to fixings
Centre of barrier C - C as below
1500mm	2000 J	2500kg 4.6 km/h	1500kg 5.9 km/h	334mm	4.2kN
2000mm	2250 J	2500kg 4.8 km/h	1500kg 5.9 km/h	414mm	5.1kN
Posts
End post	1300 J	2500kg 3.7 km/h	1500kg 4.7 km/h	550mm	6.1kN
Mid post	1300 J	2500kg 3.7 km/h	1500kg 4.7 km/h	525mm	5.6kN

View more View less
