Axelent is one of the market's leading manufacturers of machine guards. The complete system that we deliver meets current directives and standards.
Posts
The Premium 70x70 mm post comes in four heights and has an extension piece in four different heights. The standard colour is Zink yellow (RAL 1018), Graphite Black (RAL 9011) and Traffic red (RAL 3020), with a black foot. Customised colours are available upon request. This post is shipped with a...
Zink Yellow | RAL 1018
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|
P13-140 | 1400 | Zinc Yellow (RAL 1018) |
1
|
|
|
P13-200 | 2000 | Zinc Yellow (RAL 1018) |
1
|
|
|
P13-230 | 2300 | Zinc Yellow (RAL 1018) |
1
|
|
|
P13-250 | 2500 | Zinc Yellow (RAL 1018) |
1
|
Graphite Black | RAL 9011
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|
P33-140 | 1400 | Graphite Black (RAL 9011) |
1
|
|
|
P33-200 | 2000 | Graphite Black (RAL 9011) |
1
|
|
|
P33-230 | 2300 | Graphite Black (RAL 9011) |
1
|
|
|
P33-250 | 2500 | Graphite Black (RAL 9011) |
1
|
Traffic Red | RAL 3020
| CAD | Article | Height (mm) | Color | |
|---|---|---|---|---|
|
|
P73-140 | 1400 | Traffic Red (RAL 3020) |
1
|
|
|
P73-200 | 2000 | Traffic Red (RAL 3020) |
1
|
|
|
P73-230 | 2300 | Traffic Red (RAL 3020) |
1
|
|
|
P73-250 | 2500 | Traffic Red (RAL 3020) |
1
|
The Premium 70x70 mm post comes in four heights and has an extension piece in four different heights. The standard colour is Zink yellow (RAL 1018), Graphite Black (RAL 9011) and Traffic red (RAL 3020), with a black foot. Customised colours are available upon request.

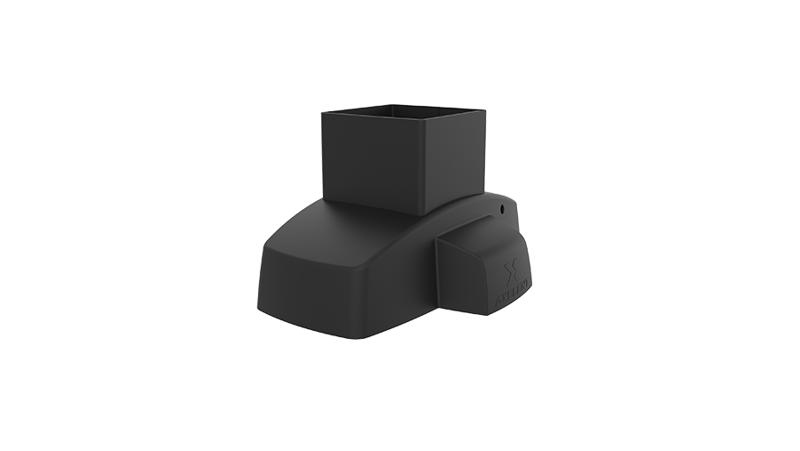

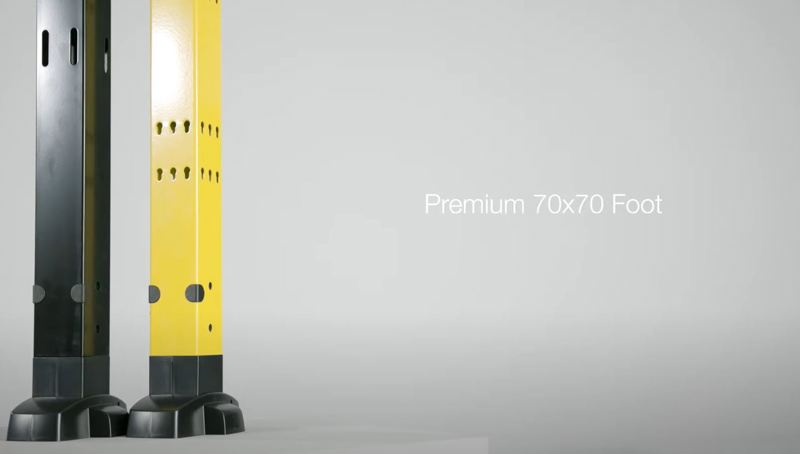

This post is shipped with a separate foot that can be fitted at four different angles. The foot plate is not centred so offers the perfect solution in tight spaces. This post is suitable when a more robust and higher machine guard is needed.
The posts have holes punched on three sides to facilitate fitting, and a floor gap of 100 mm. Top plugs and expansion bolts for floor fixing are included with the posts.
